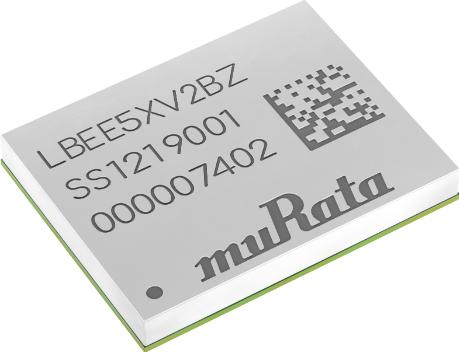

Murata ManufacturingType 2BZ | LBEE5XV2BZ-883 | Combo Wireless ModulesModule sans fil combiné

Shielded Ultra Small Dual band Wi-Fi® 11a/b/g/n/ac 2×2 MIMO + Bluetooth® 5.2 Module

• 2.4 GHz & 5 GHz Wi-Fi® + Bluetooth® Module
• Chipset: Infineon (CYW54590)
• Processor: No
• FCC/IC "Reference" Certified

High Performance Capabilities for Internet of Things

• For Industrial IoT, Smart Home, Audio/Video/Voice, Gateway
• 802.11 a/b/g/n/ac 2×2 MIMO 866 Mbps
• NXP i.MX Linux

Type 2BZ is a small and very high-performance module based on Infineon CYW54590 combo chipset which supports Wi-Fi® 802.11a/b/g/n/ac 2×2 MIMO + Bluetooth® 5.2 BR/EDR/LE up to 866Mbps PHY data rate on Wi-Fi® and 3Mbps PHY data rate on Bluetooth®. The WLAN section supports SDIO v3.0 interface and the Bluetooth® section supports high-speed 4-wire UART interface and PCM for audio data.

The CYW54590 implements highly sophisticated enhanced collaborative coexistence hardware mechanisms and algorithms, which ensure that WLAN and Bluetooth® collaboration is optimized for maximum performance.

In IEEE 802.11ac mode, the WLAN operation supports rates of MCS0 - MCS9 (up to 256 QAM) in 20MHz, 40MHz and 80MHz channels for data rate up to 866Mbps.

Type 2BZ module is packaged in an impressively small form factor that facilitates integration into size- and power-sensitive applications such as IoT applications, handheld wireless system, gateway and more. It is also good for industrial applications with operating temperature up to +85C.

Featured Enablers

• LBEE0ZZ1WE-USD-M2
• MCIMX6ULL-EVK
• MCIMX6Q-SDB
• MCIMX6UL-EVKB
• 8MNANOLPD4-EVK
• MCIMX6SX-SDB
• EAK00329
• 8MMINILPD4-EVKB
• EAK00347
• MCIMX8M-EVKB
• EAK00360
