EVAL-2HS01G-300W, 300W LLC Evaluation Board with LLC controller ICE2HS01G
Progetto di riferimento usando la parte ICE2HS01G di Infineon Technologies AG
Immagine
1 / 3
Per prodotti finali
- Power Supplies
Per contattare il Servizio Clienti.

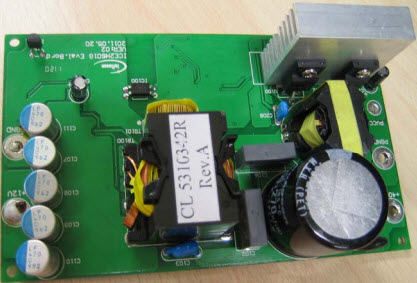

- EVAL-2HS01G-300W, 300W LLC Evaluation Board with LLC controller ICE2HS01G. The evaluation board presented is a 300W LLC Converter with 400VDC input and 12V output. It is controlled by 2nd generation half-bridge LLC controller ICE2HS01G. The ICE2HS01G is designed especially for high efficiency application with its synchronous rectification (SR) control for the secondary side. With its new driving techniques, SR can be realized for half-bridge LLC converter operated with secondary switching current in both CCM and DCM conditions
Funzioni principali
-
Conversion TypeDC to DC
-
Input Voltage400 V
-
Output Voltage12 V
-
Output Current25 A
-
Output Power300 W
-
Efficiency97 %
-
TopologyHalf Bridge- LLC
Parti in primo piano (2)
| Numero parte | Produttore | Tipo | Per contattare il Servizio Clienti. | |||
|---|---|---|---|---|---|---|
|
ICE2HS01GXUMA1 | Infineon Technologies AG | AC to DC Switching Converters | AC to DC Switching Converter Half Bridge 30kHz to 1000kHz T/R 20-Pin DSO | ACQUISTA | |
|
|
ICE2HS01G | Infineon Technologies AG | AC to DC Switching Converters | AC to DC Switching Converter Half Bridge 30kHz to 1000kHz T/R 20-Pin DSO | ACQUISTA | |
