Interfacce Ethernet| Reference Designs By Application

Ethernet Interfaces Reference Designs
Rilasciato da	Per prodotti finali
IXD1010 IXD1010, Development Tools Evaluation Of the IFX1010 In 100Base-TX and 1000Base-T Applications	Altera	Interface	Communications and Telecom
DC1249A DC1249A, Demo Board Using for LTC4267-3 PD, 37-57 V input, 3.3V@ 3A out	Analog Devices	Interface	Power Over Ethernet, PoE Security Camera, PoE Wireless Access Point
78Q8430STEM-DB 78Q8430STEM-DB, Evaluation Kit for 78Q8430 78Q8430STEM-DB, 78Q8430 STEM Demo Board (D8430T3B_STEM) is a design example for a 10/100BASE-TX MAC+PHY	Analog Devices	Interface	Set-Top Box, Factory Automation, High-Definition TV, Digital Video Recorder, Digital PBX Phone, IP Camera, Residential Gateway
78Q8430-ARM9-EVM 78Q8430-ARM9-EVM, 78Q8430 Embest Evaluation Board is a design for a 10/100BASE-TX MAC+PHY Embest S3CEB2410 daughter card	Analog Devices	Interface	Set-Top Box, Factory Automation, High-Definition TV, Digital Video Recorder, Digital PBX Phone, IP Camera, Residential Gateway
78Q21X3-DB 78Q21X3-DB, MII Evaluation Board using 78Q21X3, 10/100BASE-TX Mbit/second Fast Ethernet MII Interface adaptor	Analog Devices	Interface	IP Phone, PoE Security Camera, PoE Wireless Access Point, Analog Computer Telephony Card

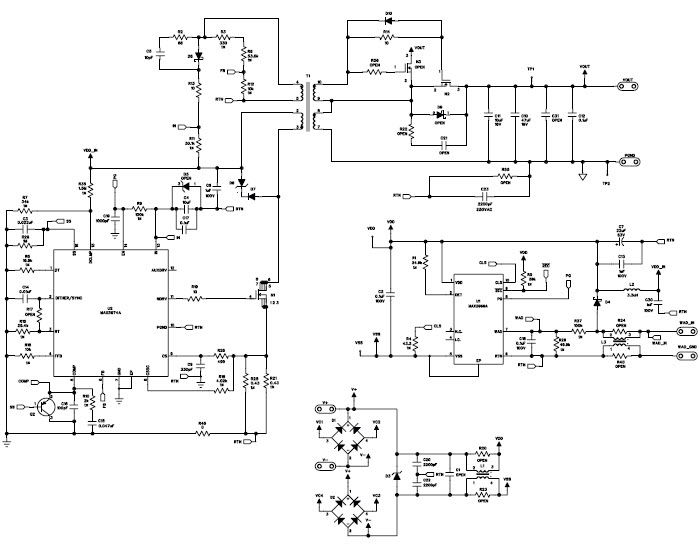

MAX5969AEVKIT# MAX5969AEVKIT#, MAX5969A Evaluation Kit is a fully assembled and tested surface-mount circuit board featuring MAX5969A IEEE 802.3af	Analog Devices	Interface	IP Phone, PoE Security Camera, PoE Wireless Access Point, Analog Computer Telephony Card
DP83849IFVS-EVK DP83849IFVS-EVK, Evaluation Board using DP83849IFVS Basic product evaluation and customer demo board with FX	Texas Instruments	Interface	Portable Medical Instrumentation, Wireless Base Station, Factory Automation, Motion Motor Control
DP83849IFVS-EVK/NOPB DP83849IFVS-EVK/NOPB, Evaluation Board using DP83849IFVS Basic product evaluation and customer demo board with FX	Texas Instruments	Interface	Portable Medical Instrumentation, Wireless Base Station, Factory Automation, Motion Motor Control
DP83849IVS-EVK DP83849IVS-EVK, PHYTER DUAL Industrial Temp 10/100 Mb/s Dual Port Ethernet Transceiver EVM	Texas Instruments	Interface	Portable Medical Instrumentation, Wireless Base Station, Factory Automation, Motion Motor Control
DP83849IVS-EVK/NOPB DP83849IVS-EVK/NOPB, PHYTER DUAL Industrial Temp 10/100 Mb/s Dual Port Ethernet Transceiver EVM	Texas Instruments	Interface	Portable Medical Instrumentation, Wireless Base Station, Factory Automation, Motion Motor Control
TIDM-ETHERNET-BOOTLOADER TIDM-Ethernet-BOOTLOADER, Ethernet Bootloader for Microcontroller	Texas Instruments	Interface	Mobile Internet Device

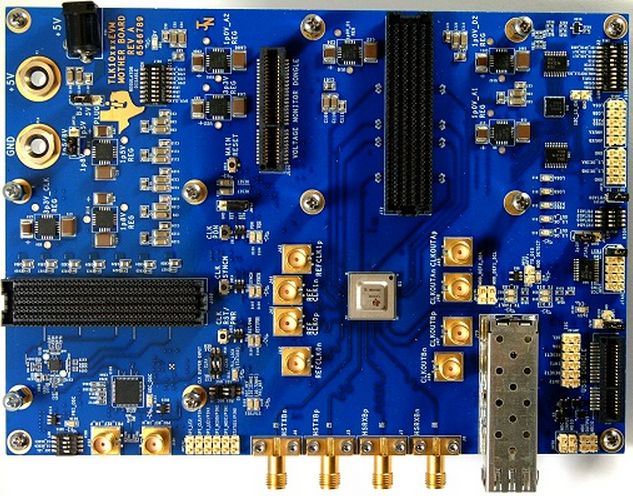

TIDA-00269 TIDA-00269, Gigabit Ethernet Link Aggregator Reference Design	Texas Instruments	Interface	Optical Networking: EPON
TIDA-00224 TIDA-00224, Industrial Ethernet PHY Brick with Fiber-Optic Interface	Texas Instruments	Interface	Industrial, Remote Control, Industrial Automation HMI, Smart Electric Meter, Glass Break Detector
TPS23861EVM-612 TPS23861EVM-612, Evaluation Module for the TPS23861 Quad IEEE 802.3 at PoE PSE Controller	Texas Instruments	Interface	Ethernet Router and Ethernet Switch, PoE Power Supply, Surveillance DVR 4-channel
TIDA-00091 TIDA-00091, Class 4 - Wide Input Range 15W Power over Ethernet (PoE) Converter	Texas Instruments	Interface	Power Over Ethernet, Surveillance Camera, DVR and DVS, Camera: Surveillance Analog, Baby Monitor, Video Doorbell
TIDA-00306 TIDA-00306, Media Converter - RJ45 to Fiber Converter	Texas Instruments	Interface	Wireless, Medical and Healthcare, Factory Automation, Motion Motor Control, Remote Control
TIDA-00207 TIDA-00207, EN55011 Compliant, Industrial Temperature, 10/100Mbps Ethernet PHY Brick Reference Design	Texas Instruments	Interface	Industrial
DPHY440SSRHREVM DPHY440SSRHREVM, Evaluation Module for DPHY440SSRHR DPHY Retimer with SAMTEC Connectors	Texas Instruments	Interface	Notebook, Clamshell Phone, Tablet, Smart Cameras
TLK2501EVM TLK2501EVM, Evaluation Module (EVM) board is used to evaluate the TLK2501 device (VQFP) and associated optical interface	Texas Instruments	Interface	Point to Point Radio
TLK1221 EVM TLK1221 EVM, Evaluation Module board is used to evaluate TLK1221 device (40-pin 6-mm x 6-mm QFN PowerPAD)	Texas Instruments	Interface	Point to Point Radio
