PMP11052, EMI Optimized Layout Design for Fly-buck Reference Design
Using Part
Vignette
1 / 2
Pour les produits finaux
- Automotive - Body Electronics
- Industrial
- Telecom Power Supply
Description

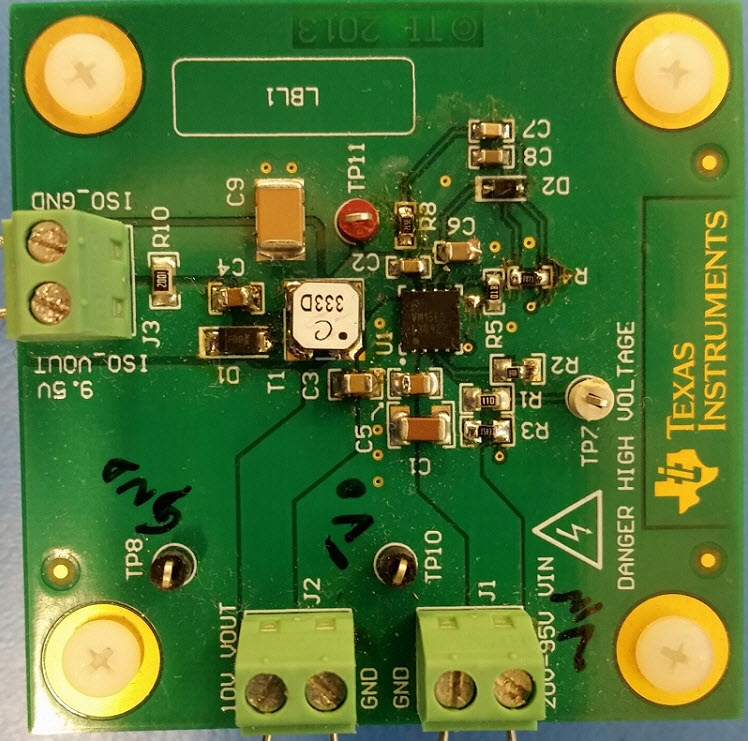

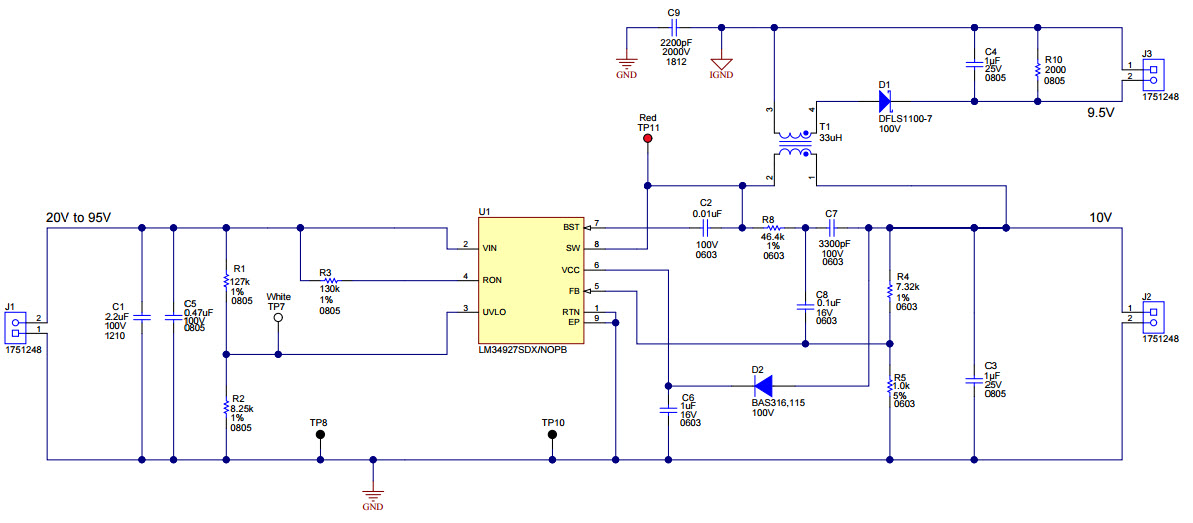

- PMP11052, EMI Optimized Layout Design for Fly-buck Reference Design. This reference design (PMP11052) demonstrates the improvement in EMI performance in a Fly-buck design with optimized layout for all high di/dt loops and compares it with another layout which is laid out just like a buck converter
Caractéristiques principales
-
Conversion TypeDC to DC
-
Input Voltage20 to 95 V
-
Output Voltage9.5|10 V
-
Output Current0.3 A
-
TopologyBuck
