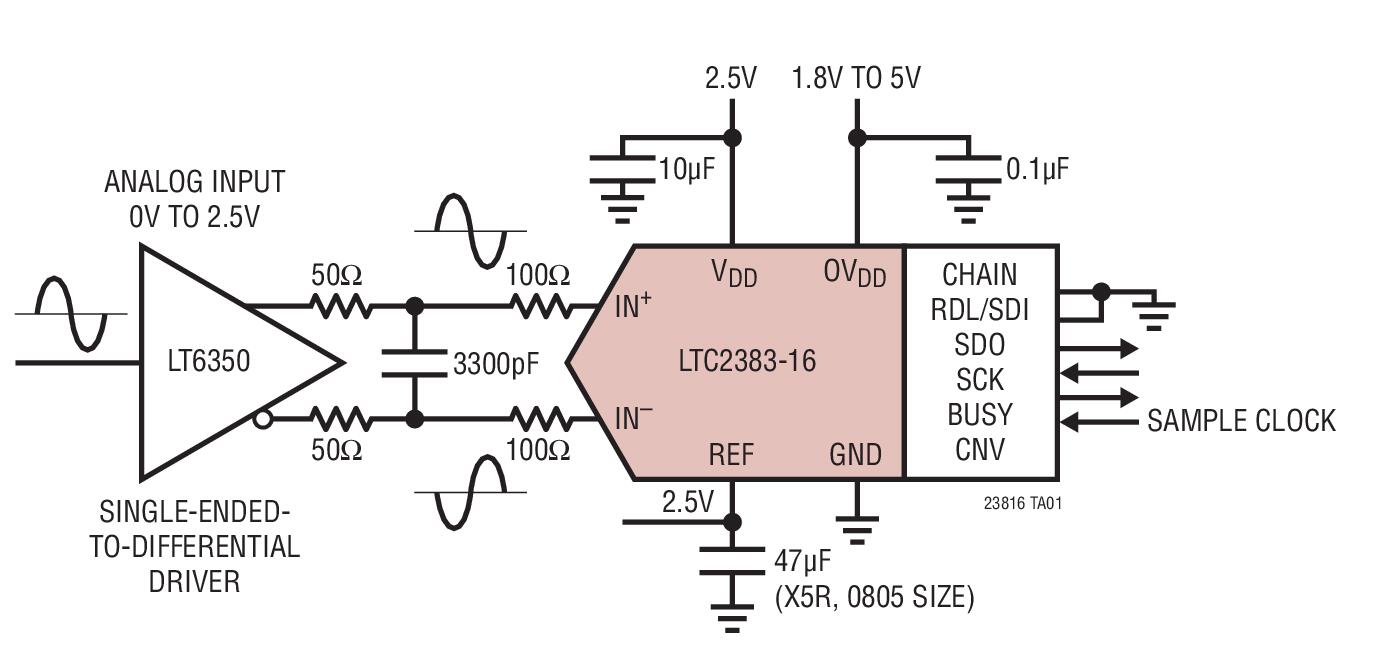

Typical Application for LTC2383-16, 16-Bit, 1-Msps Low Power SAR ADC with Serial Interface
Progetto di riferimento usando la parte LTC2383 di Analog Devices
Immagine
1 / 1
Per prodotti finali
- Battery Powered Instrument
- Data Acquisition System
- Medical Imaging
- Portable Instrumentation
- Process Control
Per contattare il Servizio Clienti.
- Typical Application for LTC2383-16, 16-Bit, 1-Msps Low Power SAR ADC. The LTC2383-16 is a low noise, low power, high speed 16-bit successive approximation register (SAR) ADC. Operating from a 2.5V supply, the LTC2383-16 has a 2.5V fully differential input range
Funzioni principali
-
ADC Resolution16 Bit
-
ADC Sampling Rate1M SPS
Parti in primo piano (10)
| Numero parte | Produttore | Tipo | Per contattare il Servizio Clienti. | |||
|---|---|---|---|---|---|---|
|
LTC2383HMS-16#PBF | Analog Devices | Analog to Digital Converters - ADCs | 1-Channel Single ADC SAR 1Msps 16-bit Serial 16-Pin MSOP Tube | ACQUISTA | |
|
LTC2383CDE-16#TRPBF | Analog Devices | Analog to Digital Converters - ADCs | 1-Channel Single ADC SAR 1Msps 16-bit Serial 16-Pin DFN EP T/R | ACQUISTA | |
|
|
LTC2383HMS-16#TRPBF | Analog Devices | Analog to Digital Converters - ADCs | 1-Channel Single ADC SAR 1Msps 16-bit Serial 16-Pin MSOP T/R | ACQUISTA | |
|
|
LTC2383CMS-16#TRPBF | Analog Devices | Analog to Digital Converters - ADCs | 1-Channel Single ADC SAR 1Msps 16-bit Serial 16-Pin MSOP T/R | ACQUISTA | |
|
|
LTC2383IDE-16#TRPBF | Analog Devices | Analog to Digital Converters - ADCs | 1-Channel Single ADC SAR 1Msps 16-bit Serial 16-Pin DFN EP T/R | ACQUISTA | |
|
|
LTC2383IMS-16#PBF | Analog Devices | Analog to Digital Converters - ADCs | 1-Channel Single ADC SAR 1Msps 16-bit Serial 16-Pin MSOP Tube | ACQUISTA | |
|
|
LTC2383CMS-16#PBF | Analog Devices | Analog to Digital Converters - ADCs | 1-Channel Single ADC SAR 1Msps 16-bit Serial 16-Pin MSOP Tube | ACQUISTA | |
|
|
LTC2383IMS-16#TRPBF | Analog Devices | Analog to Digital Converters - ADCs | 1-Channel Single ADC SAR 1Msps 16-bit Serial 16-Pin MSOP T/R | ACQUISTA | |
|
|
LTC2383IDE-16#PBF | Analog Devices | Analog to Digital Converters - ADCs | 1-Channel Single ADC SAR 1Msps 16-bit Serial 16-Pin DFN EP Tube | ACQUISTA | |
|
|
LTC2383CDE-16#PBF | Analog Devices | Analog to Digital Converters - ADCs | 1-Channel Single ADC SAR 1Msps 16-bit Serial 16-Pin DFN EP Tube | ACQUISTA | |
