TIDM-SUB1GHZ-MESH-NETWORK, Sub-1GHz Low Cost Mesh Network
Progetto di riferimento usando la parte MSP430G2533IPW28 di Texas Instruments
Immagine
1 / 2
Documenti associati
Per prodotti finali
- Outdoor Temperature Sensor
- Smoke Detector
Per contattare il Servizio Clienti.

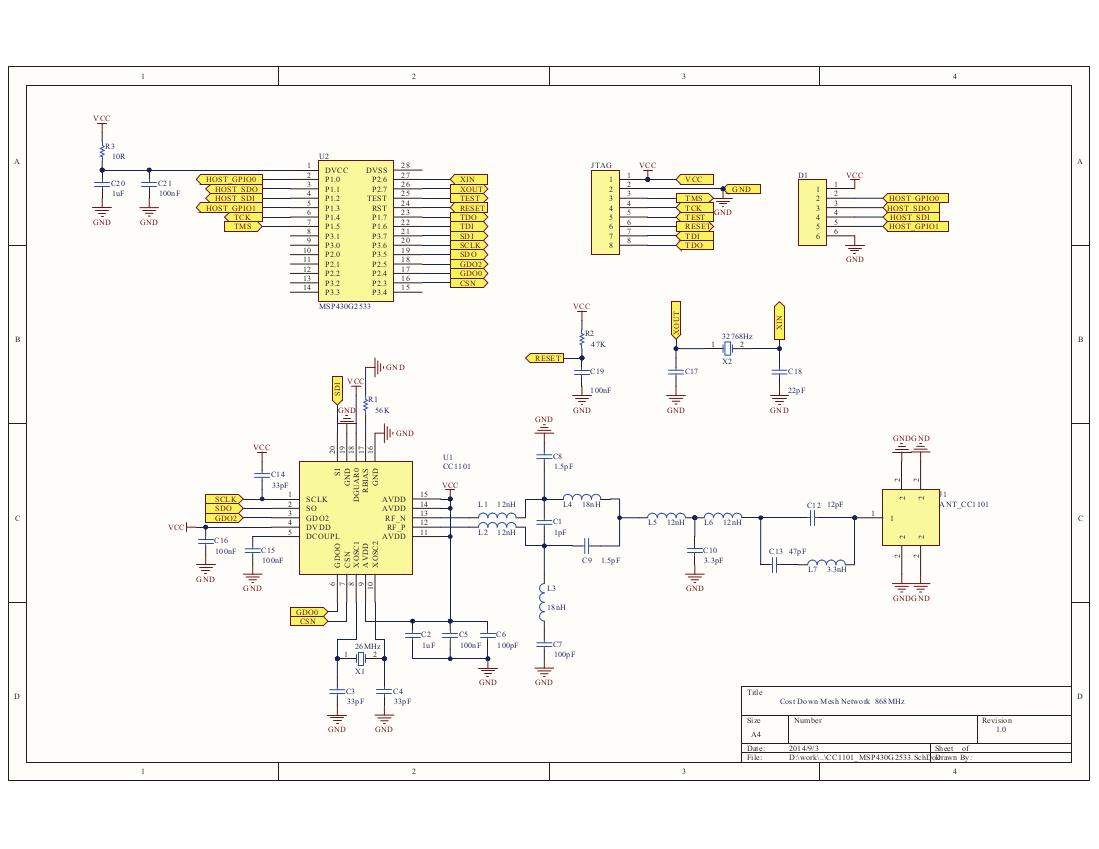

- TIDM-SUB1GHZ-MESH-NETWORK, Sub-1GHz Low Cost Mesh Network. This solution implements a mesh network within Sub-1GHz frequency band. Using the MSP430G2533 MCU and CC1101 RF module, user can easily establish a self-organization network with multi-hops, low cost, and quick response. The ability to actively join and periodically data report makes this network suitable for many sensing network application fields
Funzioni principali
-
Embedded System TypeMCU
-
Family NameMSP430
Parti in primo piano (5)
| Numero parte | Produttore | Tipo | Per contattare il Servizio Clienti. | |||
|---|---|---|---|---|---|---|
|
CC1101RGPR | Texas Instruments | RF Transceivers | RF Transceiver ASK/FSK/GFSK/OOK/MSK 2.5V/3.3V 20-Pin VQFN EP T/R | ACQUISTA | |
|
|
CC1101RGP | Texas Instruments | RF Transceivers | RF Transceiver ASK/FSK/GFSK/OOK/MSK 2.5V/3.3V 20-Pin VQFN EP Tube | ACQUISTA | |
|
|
CC1101RGPT | Texas Instruments | RF Transceivers | RF Transceiver ASK/FSK/GFSK/OOK/MSK 2.5V/3.3V 20-Pin VQFN EP T/R | ACQUISTA | |
|
MSP430G2533IPW28 | Texas Instruments | Microcontrollers - MCUs | MCU 16-bit MSP430 RISC 16KB Flash 2.5V/3.3V 28-Pin TSSOP Tube | ACQUISTA | |
|
|
MSP430G2533IPW28R | Texas Instruments | Microcontrollers - MCUs | MCU 16-bit MSP430 RISC 16KB Flash 2.5V/3.3V 28-Pin TSSOP T/R | ACQUISTA | |
