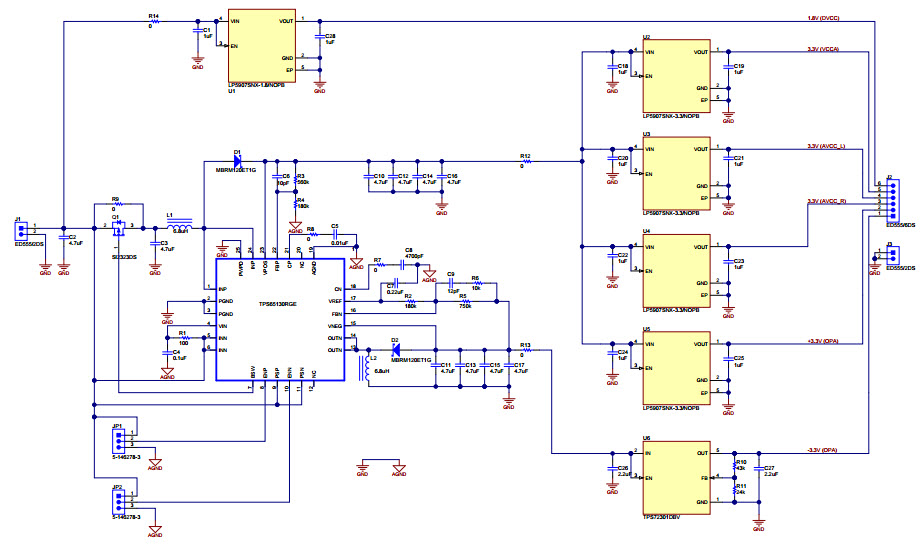

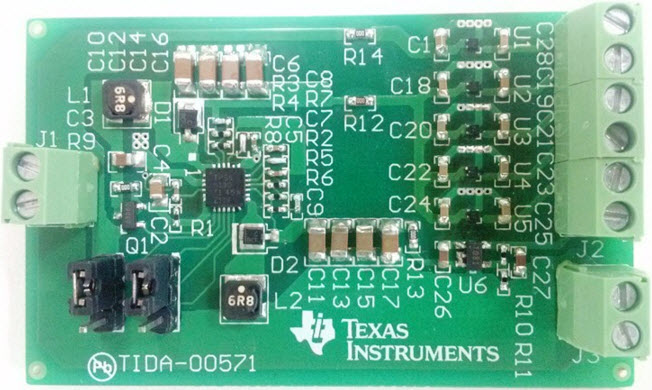

TIDA-00571, Low Noise High PSRR LDO Reference Design for Powering Hi-Fi Audio Application
Progetto di riferimento usando la parte LP5907SNX-1.8/NOPB di Texas Instruments
Immagine
1 / 3
Per prodotti finali
- Battery Powered Instrument
- Portable Instrumentation
- Smart Phone
Per contattare il Servizio Clienti.

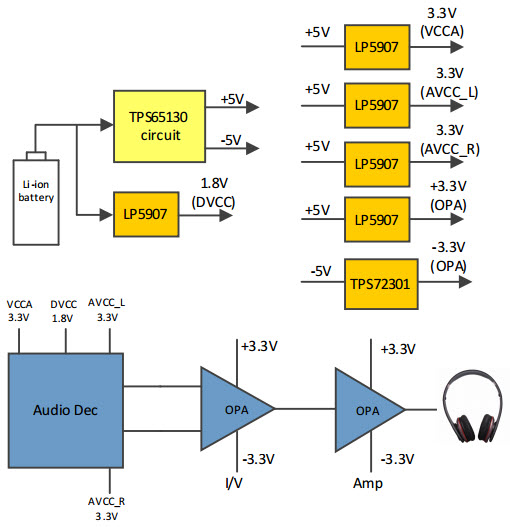

- TIDA-00571, Low Noise High PSRR LDO Reference Design for Powering Hi-Fi Audio Application. The TIDA-00571 can provide very quiet output power for Hi-Fi audio application
Funzioni principali
-
Conversion TypeDC to DC
-
Input Voltage2.7 to 4.2 V
-
Output Voltage-3.3|3.3 V
-
TopologyLDO
Parti in primo piano (6)
| Numero parte | Produttore | Tipo | Per contattare il Servizio Clienti. | |||
|---|---|---|---|---|---|---|
|
TPS72301DBVRG4 | Texas Instruments | Linear Regulators | LDO Regulator Neg -1.2V to -10V 0.2A 5-Pin SOT-23 T/R | ACQUISTA | |
|
LP5907SNX-3.3/NOPB | Texas Instruments | Linear Regulators | LDO Regulator Pos 3.3V 0.25A 4-Pin X2SON EP T/R | ACQUISTA | |
|
|
LP5907SNX-3.3/NOPB | Texas Instruments | Linear Regulators | LDO Regulator Pos 3.3V 0.25A 4-Pin X2SON EP T/R | ACQUISTA | |
|
|
TPS72301DBVR | Texas Instruments | Linear Regulators | LDO Regulator Neg -1.2V to -10V 0.2A 5-Pin SOT-23 T/R | ACQUISTA | |
|
|
LP5907SNX-1.8/NOPB | Texas Instruments | Linear Regulators | LDO Regulator Pos 1.8V 0.25A 4-Pin X2SON EP T/R | ACQUISTA | |
|
|
LP5907SNX-1.8/NOPB | Texas Instruments | Linear Regulators | LDO Regulator Pos 1.8V 0.25A 4-Pin X2SON EP T/R | ACQUISTA | |
