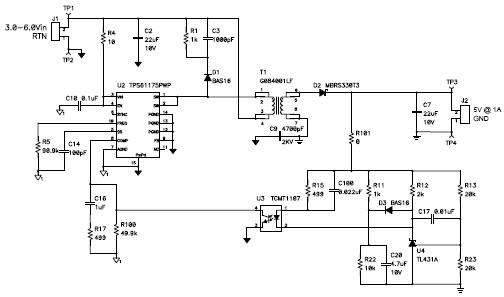

PMP4190, 3V - 6V Input, 5V/0.5A 1MHz Isolated Flyback Reference Design
Progetto di riferimento usando la parte TPS61175PWP di Texas Instruments
Immagine
1 / 1
Documenti associati
Per prodotti finali
- Communications and Telecom
- Industrial
Per contattare il Servizio Clienti.
- PMP4190, 3V - 6V Input, 5V/0.5A 1MHz Isolated Flyback Reference Design. Reference design uses the TPS61175 boost converter to drive a flyback power stage. With its integrated MOSFET, the TPS61175 reduces the circuit complexity and footprint. In addition, operating at 1MHz reduces the size of the passive components
Funzioni principali
-
Conversion TypeDC to DC
-
Input Voltage3 to 6 V
-
Output Voltage5 V
-
Output Current0.5 A
-
Output Power2.5 W
-
TopologyFlyback- Non Sync
Parti in primo piano (7)
| Numero parte | Produttore | Tipo | Per contattare il Servizio Clienti. | |||
|---|---|---|---|---|---|---|
|
TL431AIDBZT | Texas Instruments | Voltage References | V-Ref Adjustable 2.495V to 36V 100mA 3-Pin SOT-23 T/R | ACQUISTA | |
|
TCMT1107 | Vishay | Transistor and Photovoltaic Output Photocouplers | Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin SSOP T/R | ACQUISTA | |
|
|
TL431AIDBZR | Texas Instruments | Voltage References | V-Ref Adjustable 2.495V to 36V 100mA 3-Pin SOT-23 T/R | ACQUISTA | |
|
|
TL431AIDBZRG4 | Texas Instruments | Voltage References | V-Ref Adjustable 2.495V to 36V 100mA 3-Pin SOT-23 T/R | ACQUISTA | |
|
|
TL431AIDBZTG4 | Texas Instruments | Voltage References | V-Ref Adjustable 2.495V to 36V 100mA 3-Pin SOT-23 T/R | ACQUISTA | |
|
TPS61175PWP | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 2.9V to 18V Step Up Single-Out 2.9V to 38V 14-Pin HTSSOP EP Tube | ACQUISTA | |
|
|
TPS61175PWPR | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 2.9V to 18V Step Up Single-Out 2.9V to 38V 14-Pin HTSSOP EP T/R | ACQUISTA | |
