One LED High Brightness LED Driver for Automotive
Progetto di riferimento usando la parte LM3485 di Texas Instruments

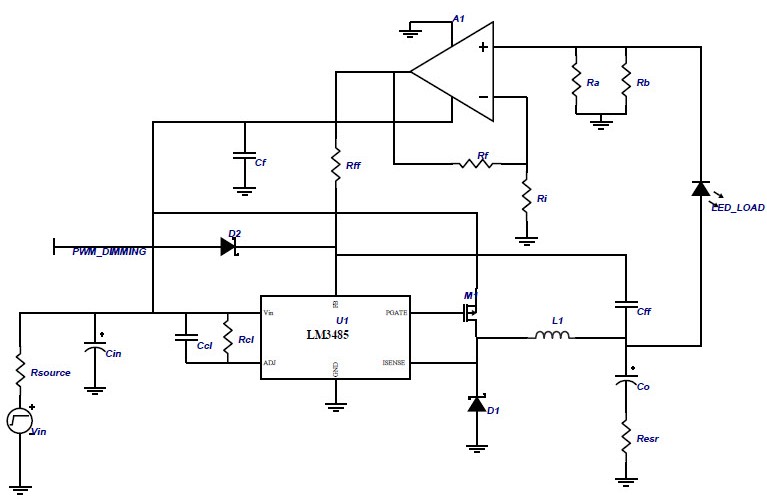

Immagine
1 / 1
Documenti associati
Per prodotti finali
- Automotive and Transportation
- Automotive Lighting
- LCD Backlighting
- LCD Display
- LCD Monitor
Per contattare il Servizio Clienti.
- Buck Regulator Derived Controlled Current Source Designed to Drive High Power, High Brightness LEDs at Constant Current of 1A
Funzioni principali
-
Input Voltage10 to 30 V
-
Output Voltage8 V
-
Output Current1 A
-
Number of Derived Elements1
Parti in primo piano (8)
| Numero parte | Produttore | Tipo | Per contattare il Servizio Clienti. | |||
|---|---|---|---|---|---|---|
|
LM321MFX/NOPB | Texas Instruments | Operational Amplifiers - Op Amps | Op Amp Single Low Power Amplifier ±15V/30V 5-Pin SOT-23 T/R | ACQUISTA | |
|
|
LM321MF/NOPB | Texas Instruments | Operational Amplifiers - Op Amps | Op Amp Single Low Power Amplifier ±15V/30V 5-Pin SOT-23 T/R | ACQUISTA | |
|
|
LM321MFX/NOPB | Texas Instruments | Operational Amplifiers - Op Amps | Op Amp Single Low Power Amplifier ±15V/30V 5-Pin SOT-23 T/R | ACQUISTA | |
|
|
LM321MF/NOPB | Texas Instruments | Operational Amplifiers - Op Amps | Op Amp Single Low Power Amplifier ±15V/30V 5-Pin SOT-23 T/R | ACQUISTA | |
|
LM3485MM/NOPB | Texas Instruments | DC to DC Controllers | DC/DC Cntrlr Single-OUT Step Down 8-Pin VSSOP T/R | ACQUISTA | |
|
|
LM3485MMX/NOPB | Texas Instruments | DC to DC Controllers | DC/DC Cntrlr Single-OUT Step Down 8-Pin VSSOP T/R | ACQUISTA | |
|
|
LM3485MM/NOPB | Texas Instruments | DC to DC Controllers | DC/DC Cntrlr Single-OUT Step Down 8-Pin VSSOP T/R | ACQUISTA | |
|
|
LM3485MMX/NOPB | Texas Instruments | DC to DC Controllers | DC/DC Cntrlr Single-OUT Step Down 8-Pin VSSOP T/R | ACQUISTA | |
