MAX5868EVKIT#, Evaluation Kit for the MAX5868 16-Bit, 5Gsps Interpolating and Modulating RF DAC
Progetto di riferimento usando la parte MAX5868EXE+ di Analog Devices

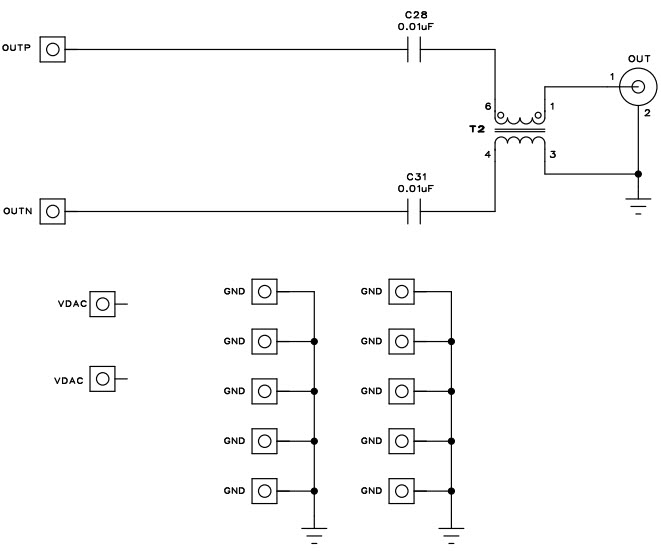

Immagine
1 / 13
Per prodotti finali
- GPON & EPON
- PoE Wireless Access Point
- Remote Control
- Video Broadcasting
Per contattare il Servizio Clienti.
- MAX5868EVKIT#, Evaluation Kit (EV kit) contains a single MAX5868 high-performance interpolating and modulating 16-Bit, 4.96Gsps digital-to-analog converter (DAC) which can directly synthesize 500MHz of instantaneous bandwidth from DC to frequencies greater than 2GHz. The device is optimized for cable access and digital video broadcast applications and meets spectral emission requirements for a broad set of radio transmitters and modulators, including EPoC, DVB-T, DVB-T2, DVB-C2, ISDB-T and DOCSIS 3.0/3.1. The MAX5868 EV kit provides a complete system for evaluating performance of the MAX5868 device, as well as development of a digital video solution
Funzioni principali
-
DAC Resolution16 Bit
-
DAC Sampling Rate5G SPS
Parti in primo piano (28)
| Numero parte | Produttore | Tipo | Per contattare il Servizio Clienti. | |||
|---|---|---|---|---|---|---|
|
MAX6120EUR+T | Analog Devices | Voltage References | V-Ref Precision 1.2V 3-Pin SOT-23 T/R | ACQUISTA | |
|
MAX8511EXK33+ | Analog Devices | Linear Regulators | LDO Regulator Pos 3.3V 0.12A 5-Pin SC-70 T/R | ACQUISTA | |
|
MAX2871ETJ+T | Analog Devices | Clock Generators and Synthesizers | Clock Generator 10MHz to 210MHz-IN 32-Pin TQFN EP T/R | ACQUISTA | |
|
MAX4761ETX+ | Analog Devices | Analog Switch Multiplexers | Analog Switch Octal SPDT 36-Pin TQFN EP Tube | ACQUISTA | |
|
|
MAX2871ETJ+T | Analog Devices | Clock Generators and Synthesizers | Clock Generator 10MHz to 210MHz-IN 32-Pin TQFN EP T/R | ACQUISTA | |
|
SY89876LMG | Microchip Technology | Clock Buffers and Drivers | Clock Divider/Fanout Buffer 2-OUT 1-IN 1:2 16-Pin QFN EP Tube | ACQUISTA | |
|
MAX6654MEE+ | Analog Devices | Temperature and Humidity Sensors | Temp Sensor Digital Serial (2-Wire, I2C, SMBus) 16-Pin QSOP Tube | ACQUISTA | |
|
FT4232HL | Future Technology Devices International Limited | USB Interface ICs | Full Speed/High Speed USB to UART/MPSSE USB 2.0 1.8V/3.3V 64-Pin LQFP | ACQUISTA | |
|
|
MAX8511EXK33+ | Analog Devices | Linear Regulators | LDO Regulator Pos 3.3V 0.12A 5-Pin SC-70 T/R | ACQUISTA | |
|
|
MAX6120EUR+ | Analog Devices | Voltage References | V-Ref Precision 1.2V 3-Pin SOT-23 T/R | ACQUISTA | |
|
MAX8527EUD+ | Analog Devices | Linear Regulators | LDO Regulator Pos 0.5V to 3.4V 2A 14-Pin TSSOP EP Tube | ACQUISTA | |
|
|
MAX6654MEE+T | Analog Devices | Temperature and Humidity Sensors | Temp Sensor Digital Serial (2-Wire, I2C, SMBus) 16-Pin QSOP T/R | ACQUISTA | |
