DC1244A, Demo Board Using for LTC3890EGN-1 High Voltage, Low IQ, Dual 2-Phase Synchronous Step-Down Controller
Progetto di riferimento usando la parte LTC3890EGN-1 di Analog Devices
Immagine
1 / 1
Documenti associati
Per prodotti finali
- Automotive and Transportation
- Battery Management
- Distributed Control System
Per contattare il Servizio Clienti.

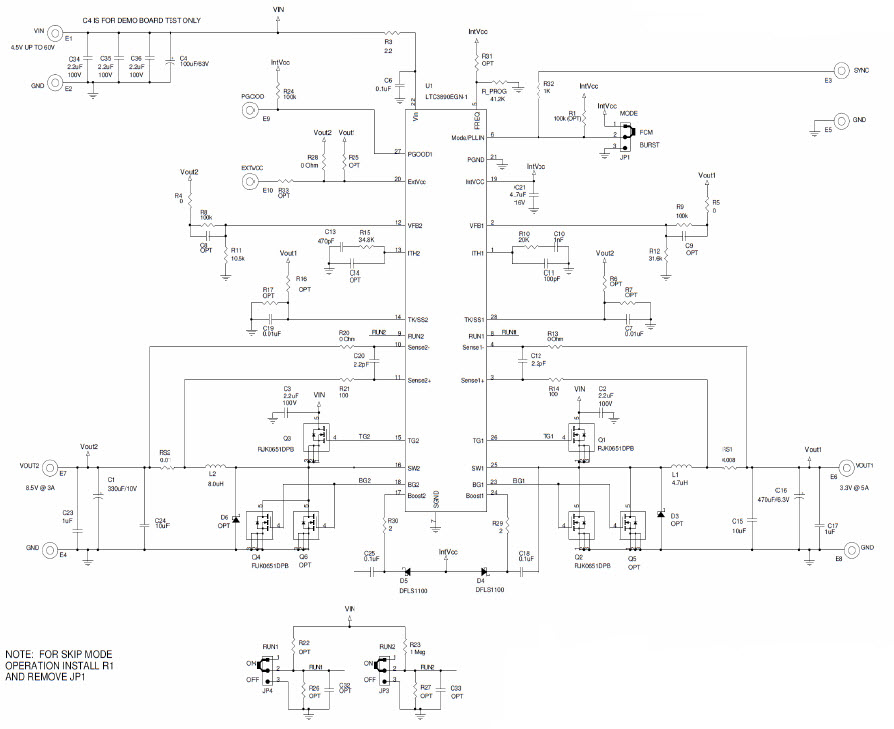

- DC1244A, Demo Board Using for LTC3890EGN-1 High Voltage, Low IQ, Dual 2-Phase Synchronous Step-Down Controller. The Demonstration Circuit DC1244A features LTC3890EGN-1, is a Low Quiescent Current, Dual Output Synchronous Buck Converter. It converts a 4.5V-60V voltage source to 3.3V at 5.0A and 8.5V at 3.0A. When the input voltage is close or below 9V, 8.5V output enters into dropout mode
Funzioni principali
-
Conversion TypeDC to DC
-
Input Voltage4.5 to 60 V
-
Output Voltage3.3|8.5 V
-
Output Current0 to 3@8.5V|0 to 5@3.3V A
-
Efficiency96 %
-
TopologyBuck
Parti in primo piano (2)
| Numero parte | Produttore | Tipo | Per contattare il Servizio Clienti. | |||
|---|---|---|---|---|---|---|
|
LTC3890EGN-1#TRPBF | Analog Devices | DC to DC Controllers | DC/DC Cntrlr Dual-OUT Step Down 900kHz 28-Pin SSOP N T/R | ACQUISTA | |
|
|
LTC3890EGN-1#PBF | Analog Devices | DC to DC Controllers | DC/DC Cntrlr Dual-OUT Step Down 900kHz 28-Pin SSOP N Tube | ACQUISTA | |
