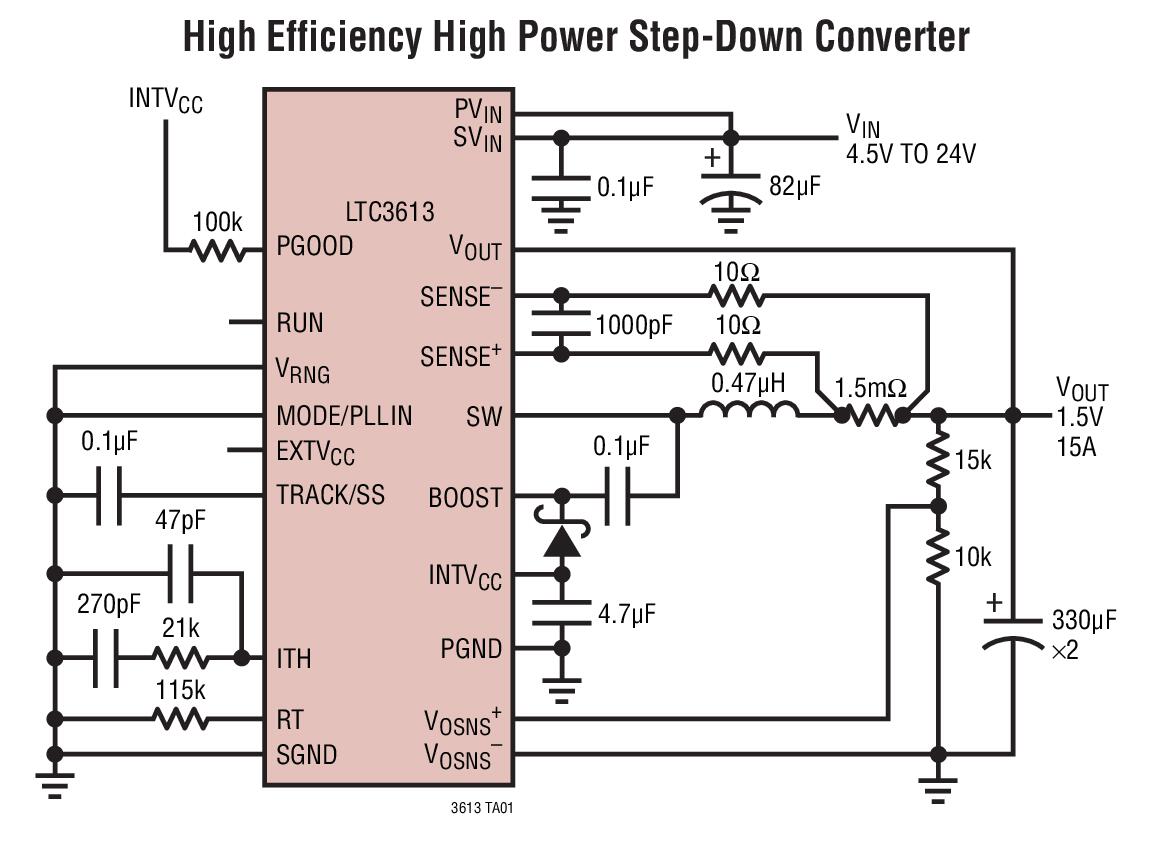

Typical Application for LTC3613 - 24V, 15A Monolithic Step Down Regulator with Differential Output Sensing

Reference Design using part LTC3613 by Analog Devices

Enlarge
Image 1 / 1

Manufacturer

Analog Devices
  • Application Category
    Power Supplies
  • Product Type
    DC to DC Single Output Power Supplies

For End Products

  • Distributed Power System
  • Point-of-Load Conversions
  • Servers

Description

  • Typical Application for the LTC3613 is a monolithic synchronous step-down switching regulator capable of regulating outputs from 0.6V to 5.5V with up to 15A output current

Key Features

  • Conversion Type
    DC to DC

Featured Parts (4)

Featured Parts
Part Number Manufacturer Type Description
LTC3613IWKH#PBF Analog Devices DC to DC Converter and Switching Regulator Chip Conv DC-DC 4.5V to 24V Synchronous Step Down Single-Out 0.6V to 5.5V 15A 56-Pin QFN EP Tube Buy
LTC3613IWKH#TRPBF Analog Devices DC to DC Converter and Switching Regulator Chip Conv DC-DC 4.5V to 24V Synchronous Step Down Single-Out 0.6V to 5.5V 15A 56-Pin QFN EP T/R Buy
LTC3613EWKH#PBF Analog Devices DC to DC Converter and Switching Regulator Chip Conv DC-DC 4.5V to 24V Synchronous Step Down Single-Out 0.6V to 5.5V 15A 56-Pin QFN EP Tube Buy
LTC3613EWKH#TRPBF Analog Devices DC to DC Converter and Switching Regulator Chip Conv DC-DC 4.5V to 24V Synchronous Step Down Single-Out 0.6V to 5.5V 15A 56-Pin QFN EP T/R Buy
