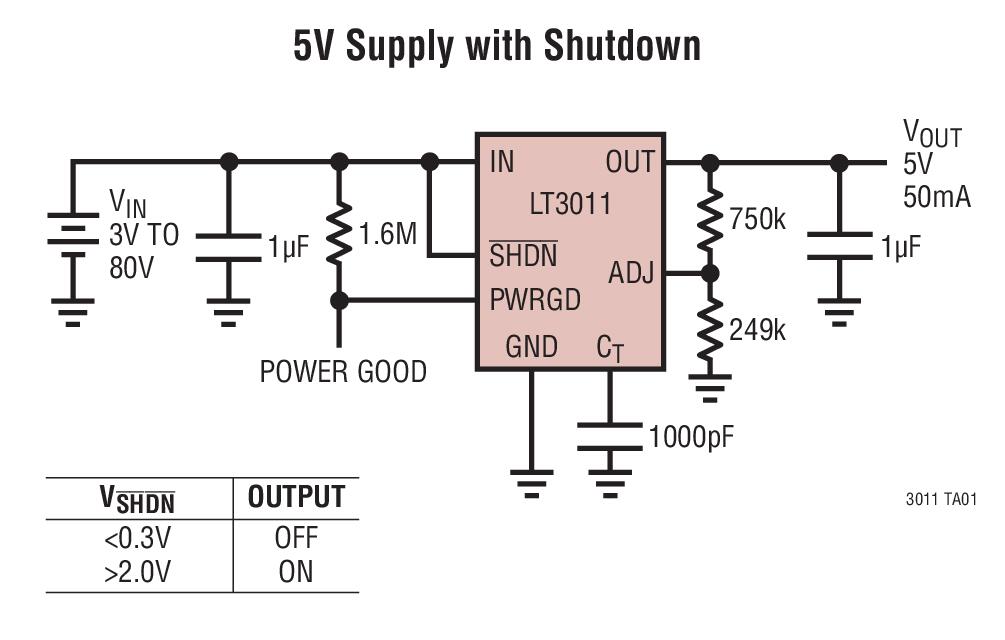

Typical Application for LT3011 - 50mA, 3V to 80V Low Dropout Micro-power Linear Regulator with PWRGD

Reference Design using part LT3011 by Analog Devices

Enlarge
Image 1 / 1

Manufacturer

Analog Devices
  • Application Category
    Power Supplies
  • Product Type
    DC to DC Single Output Power Supplies

For End Products

  • Power Supplies

Description

  • Typical Application for LT3011 - 50mA, 3V to 80V Low Dropout Micro-power Linear Regulator with PWRGD

Key Features

  • Conversion Type
    DC to DC
  • Topology
    LDO

Featured Parts (6)

Featured Parts
Part Number Manufacturer Type Description
LT3011EMSE#TRPBF Analog Devices Linear Regulators LDO Regulator Pos 1.24V to 60V 0.05A 12-Pin MSOP EP T/R Buy
LT3011HMSE#TRPBF Analog Devices Linear Regulators LDO Regulator Pos 1.24V to 60V 0.05A 12-Pin MSOP EP T/R Buy
LT3011EMSE#PBF Analog Devices Linear Regulators LDO Regulator Pos 1.24V to 60V 0.05A 12-Pin MSOP EP Tube Buy
LT3011IMSE#PBF Analog Devices Linear Regulators LDO Regulator Pos 1.24V to 60V 0.05A 12-Pin MSOP EP Tube Buy
LT3011HMSE#PBF Analog Devices Linear Regulators LDO Regulator Pos 1.24V to 60V 0.05A 12-Pin MSOP EP Tube Buy
LT3011IMSE#TRPBF Analog Devices Linear Regulators LDO Regulator Pos 1.24V to 60V 0.05A 12-Pin MSOP EP T/R Buy
