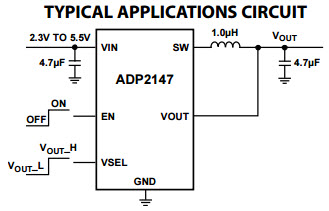

Typical Application for ADP2147 Compact, 800 mA, 3 MHz, Simple DVS, Buck Regulator

Reference Design using part ADP2147 by Analog Devices

Enlarge
Image 1 / 1

Manufacturer

Analog Devices
  • Application Category
    Power Supplies
  • Product Type
    DC to DC Single Output Power Supplies

For End Products

  • Digital Camera
  • GPS Navigation
  • Medical Equipments
  • Palmtops
  • Personal Digital Assistant
  • Portable Audio
  • Portable Media Player
  • Wireless Handsets

Description

  • Typical Application for ADP2147 Compact, 800 mA, 3 MHz, Simple DVS, Buck Regulator. The ADP2147 is a high efficiency, low quiescent current, stepdown (buck) dc-to-dc regulator with an output voltage that can be switched between two different settings under the control of a select pin. The total solution requires only three tiny external components

Key Features

  • Conversion Type
    DC to DC
  • Topology
    Buck

Featured Parts (4)

Featured Parts
Part Number Manufacturer Type Description
ADP2147ACBZ-150-R7 Analog Devices DC to DC Converter and Switching Regulator Chip Conv DC-DC 2.3V to 5.5V Synchronous Step Down Single-Out 0.8V to 3.3V 0.8A 6-Pin WLCSP T/R Buy
ADP2147ACBZ-110-R7 Analog Devices DC to DC Converter and Switching Regulator Chip Conv DC-DC 2.3V to 5.5V Synchronous Step Down Single-Out 0.8V to 3.3V 0.8A 6-Pin WLCSP T/R Buy
ADP2147ACBZ-170-R7 Analog Devices DC to DC Converter and Switching Regulator Chip Conv DC-DC 2.3V to 5.5V Synchronous Step Down Single-Out 0.8V to 3.3V 0.8A 6-Pin WLCSP T/R Buy
ADP2147ACBZ-130-R7 Analog Devices DC to DC Converter and Switching Regulator Chip Conv DC-DC 2.3V to 5.5V Synchronous Step Down Single-Out 0.8V to 3.3V 0.8A 6-Pin WLCSP T/R Buy
