TPS54010EVM-067 kit allows the designer to evaluate the 14-A TPS54010 synchronous buck DC/DC converter with integrated power MOSFETs

Reference Design using part TPS54010PWP by Texas Instruments

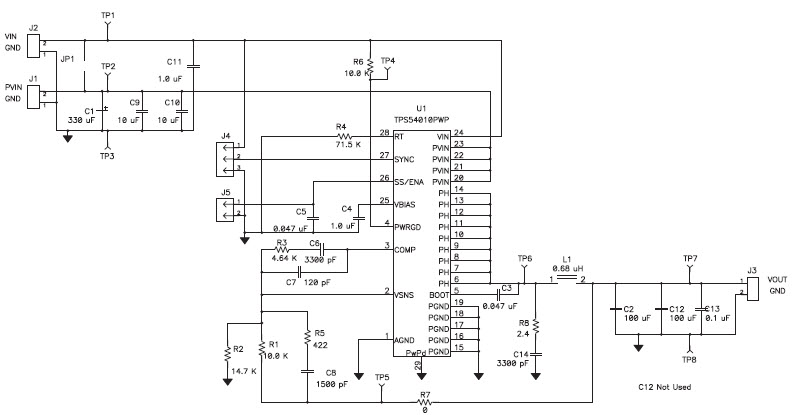

Enlarge
Image 1 / 1

Manufacturer

Texas Instruments
  • Application Category
    Power Supplies
  • Product Type
    DC to DC Single Output Power Supplies
Buy

Associated Documents

For End Products

  • Broadband Access
  • FPGA Solutions
  • Optical Networking
  • Processor Power Management
  • Wired Networking

Description

  • TPS54010EVM-067, kit allows the designer to evaluate the 14-A TPS54010 synchronous buck DC/DC converter with integrated power MOSFETs. The input voltage range is 3.0 V to 3.6 V and the power stage input is 2.2 V to 4.0 V. The output voltage is adjustable down to 0.9 V (module preset to 1.5 V). Other voltages are possible by changing a resistor divider. The TPS54010 is ideal for regulating the voltage in point of load application from a 2.5/3.3 V bus for high current DSPs, FPGAs, ASICs, and microcontrollers

Key Features

  • Conversion Type
    DC to DC
  • Input Voltage
    2.2 to 4|3 to 4 V
  • Output Voltage
    1.5 V
  • Output Current
    0 to 14 A
  • Efficiency
    94 %
  • Topology
    Buck

Featured Parts (4)

Featured Parts
Part Number Manufacturer Type Description
TPS54010PWP Texas Instruments DC to DC Converter and Switching Regulator Chip Conv DC-DC 2.2V to 4V Synchronous Step Down Single-Out 0.9V to 2.5V 14A 28-Pin HTSSOP EP Tube Buy
TPS54010PWPG4 Texas Instruments DC to DC Converter and Switching Regulator Chip Conv DC-DC 2.2V to 4V Synchronous Step Down Single-Out 0.9V to 2.5V 14A 28-Pin HTSSOP EP Tube Buy
TPS54010PWPRG4 Texas Instruments DC to DC Converter and Switching Regulator Chip Conv DC-DC 2.2V to 4V Synchronous Step Down Single-Out 0.9V to 2.5V 14A 28-Pin HTSSOP EP T/R Buy
TPS54010PWPR Texas Instruments DC to DC Converter and Switching Regulator Chip Conv DC-DC 2.2V to 4V Synchronous Step Down Single-Out 0.9V to 2.5V 14A 28-Pin HTSSOP EP T/R Buy
