Typical Application for ADP1621 Constant-Frequency, Current-Mode Step-Up DC/DC Controller
使用 Analog Devices 的 ADP1621ARMZ 的参考设计
1 / 2
依据最终产品

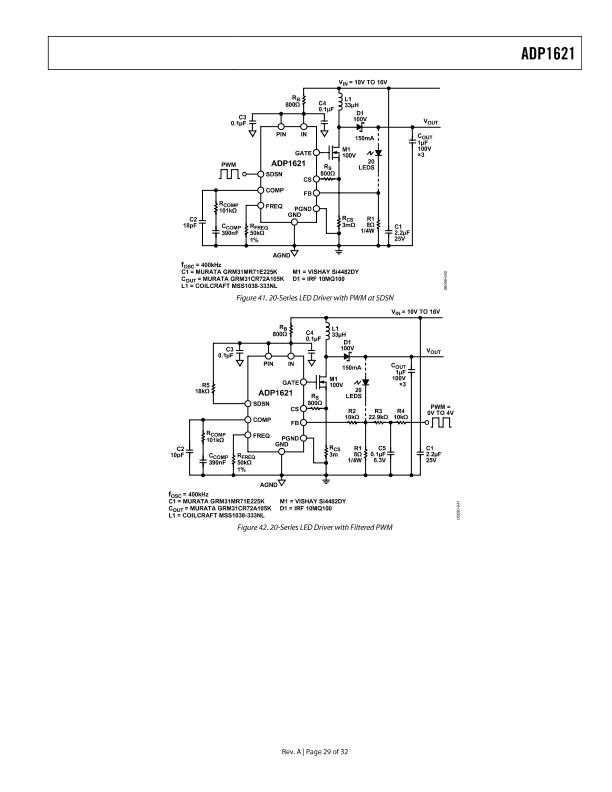

- LCD Backlighting
- LED Driver
- Portable
说明

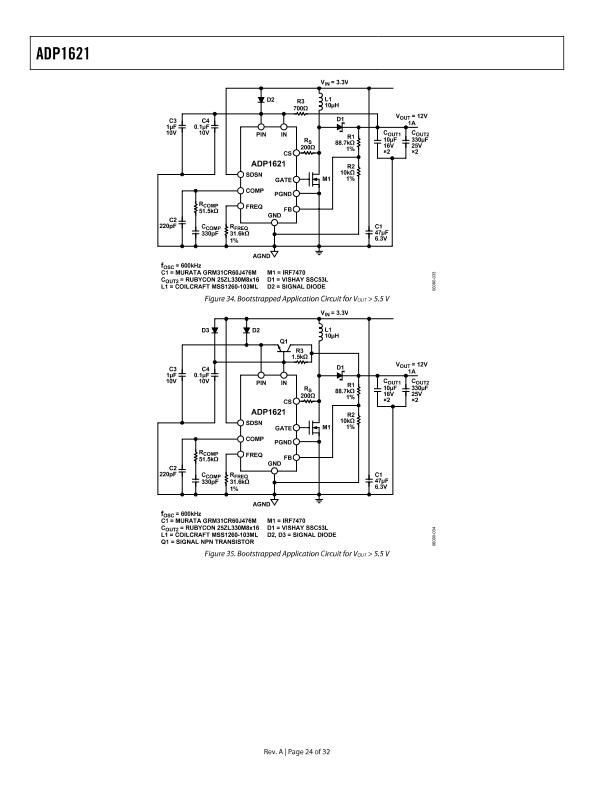

- Typical Application for ADP1621 Constant-Frequency, Current-Mode Step-Up DC/DC Controller. The input range for the demo board is 3V to 3.6V and the output voltage is 5V with a maximum load of 2A. The switching frequency fSW is set to 600 kHz with a 36 k-ohm resistor. This design is done in all multilayer ceramic capacitors (MLCC), although other types of capacitors can be used such as the aluminum polymer or aluminum electrolytic capacitors
主要特色
-
Conversion TypeDC to DC
-
Input Voltage2.9 to 5.5 V
-
Output Voltage5 V
-
Output Current1 A
-
Efficiency90 %
-
TopologyBoost
Featured Parts (1)
| 零件编号 | 供应商 | 类别 | 说明 | |||
|---|---|---|---|---|---|---|
|
ADP1621ARMZ-R7 | Analog Devices | DC to DC Controllers | DC/DC Cntrlr Single-OUT Step Up 1500kHz 10-Pin MSOP T/R | 买入 | |
