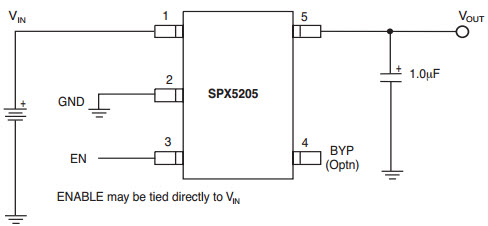

Typical Application for SPX5205 150mA Low-Noise LDO Voltage Regulator
Using Part
Vignette
1 / 1
Pour les produits finaux
- Battery Powered Systems
- Cellular Phone
- Cordless Phone
- Laptop
- Notebook
- Palmtops
- Radio Control System
Description
- Typical Application for SPX5205 is a positive voltage regulator with very low dropout voltage, output noise and ground current (750uA at 100mA). VOUT has a tolerance of less than 1% and is temperature compensated. Fixed output voltages 1.2V, 1.8V, 2.5V, 2.8V, 3V, 3.3V and 5V and an adjustable version are available in a small 5-pin SOT-23 package
Caractéristiques principales
-
Conversion TypeDC to DC
-
TopologyLDO
Pièces en vedette (4)
| Pièce numéro | Fabricant | Type | Description | |||
|---|---|---|---|---|---|---|
|
SPX5205M5-L-3-0/TR | MaxLinear | Linear Regulators | LDO Regulator Pos 3V 0.15A 5-Pin SOT-23 T/R | Ajouter au panier | |
|
|
SPX5205M5-L-3-3/TR | MaxLinear | Linear Regulators | LDO Regulator Pos 3.3V 0.15A 5-Pin SOT-23 T/R | Ajouter au panier | |
|
|
SPX5205M5-L/TR | MaxLinear | Linear Regulators | LDO Regulator Pos 0.15A 5-Pin SOT-23 T/R | Ajouter au panier | |
|
|
SPX5205M5-L-5-0/TR | MaxLinear | Linear Regulators | LDO Regulator Pos 5V 0.15A 5-Pin SOT-23 T/R | Ajouter au panier | |
