TIDM-LPBP-EMADAPTER, Evaluation Module (EM) Adaptor
Using Part
Vignette
1 / 2
Description

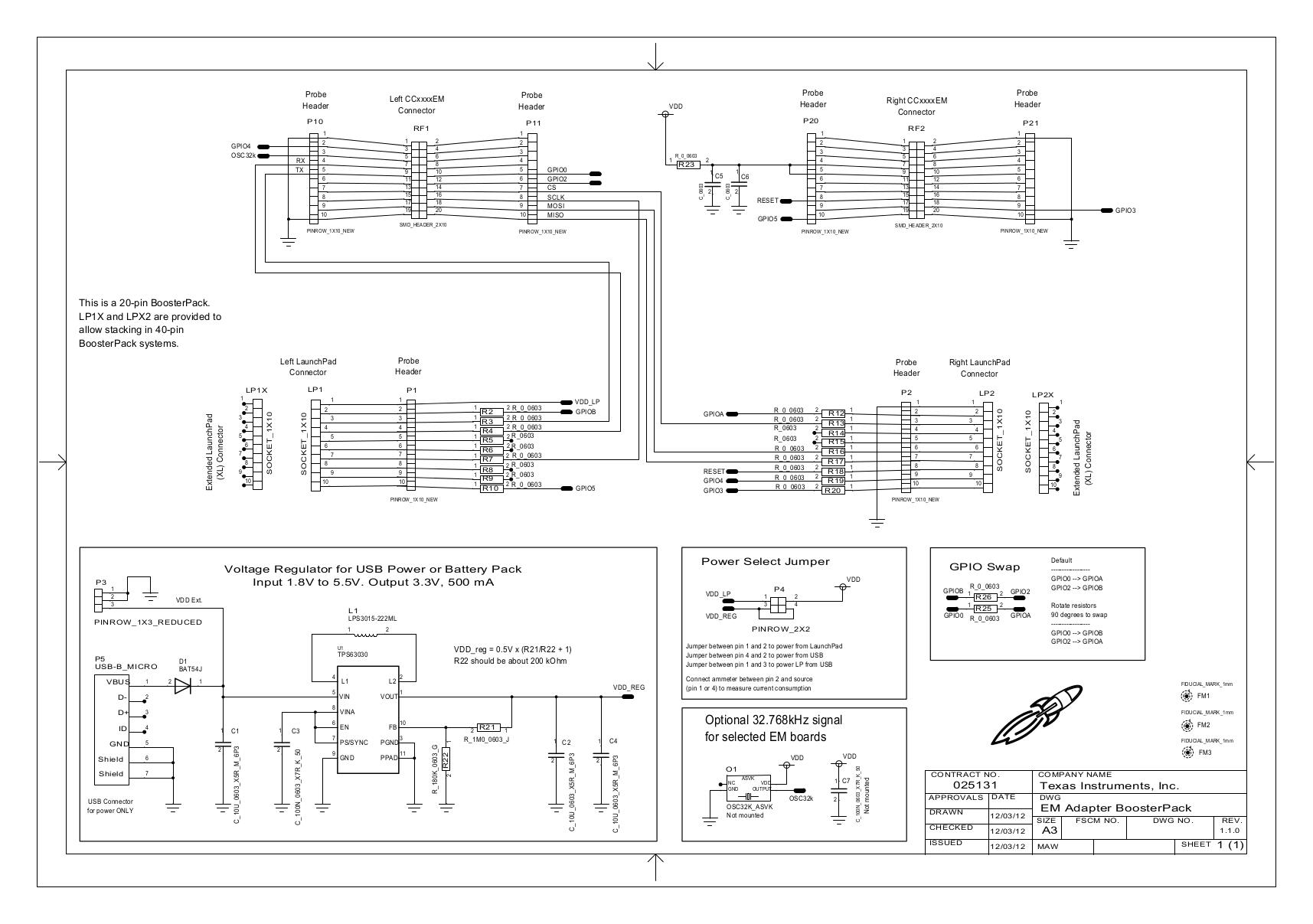

- TIDM-LPBP-EMADAPTER, Evaluation Module (EM) Adaptor. This BoosterPack kit contains one "EM Adapter BoosterPack". The purpose of the EM adapter board is to provide an-easy-to-use bridge between any of the MCU LaunchPads and the vide variety of RF evaluation modules (EM), for instance the CCxxxx Low-Power RF evaluation modules. No specific software is provided, so it is up to the user to write the appropriate code to interconnect the MCU with the RF device
Caractéristiques principales
-
Conversion TypeDC to DC
-
TopologyBuck Boost
Pièces en vedette (2)
| Pièce numéro | Fabricant | Type | Description | |||
|---|---|---|---|---|---|---|
|
TPS63030DSKT | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 1.8V to 5.5V Non-Inv/Inv/Step Up/Step Down Single-Out 1.2V to 5.5V 0.8A 10-Pin WSON EP T/R | Ajouter au panier | |
|
|
TPS63030DSKR | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 1.8V to 5.5V Non-Inv/Inv/Step Up/Step Down Single-Out 1.2V to 5.5V 0.8A 10-Pin WSON EP T/R | Ajouter au panier | |
