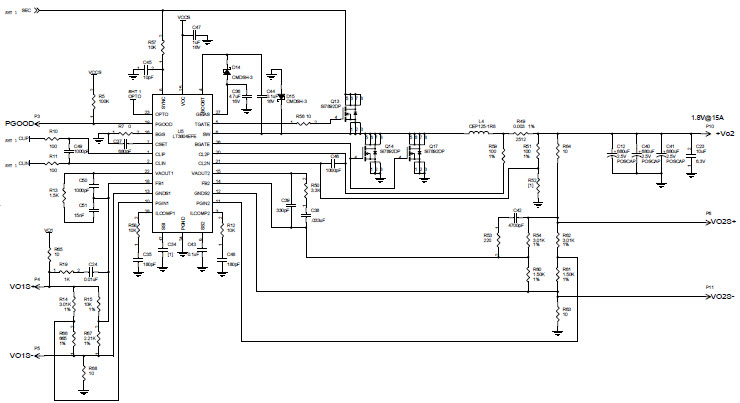

LT3804EFE LT3781EG LTC1693-1IS8 Demo Board, Dual Output Isolated Power Supply, 36V to 72V Input, +Vo1=3.3V @ 15A, +Vo2 = 1.8V @ 15A
Using Part
Vignette
1 / 2
Documents connexes
Pour les produits finaux
- Automotive and Transportation
- Computers and Peripherals
- Telecom Power Supply
Description
- Demonstration circuit DC610A is a dual output high efficiency isolated DC/DC power supply with 36V to 72V input range. It has two outputs: 3.3V at 15A max and 1.8V at 15A max
Caractéristiques principales
-
Conversion TypeDC to DC
-
Input Voltage36 to 72 V
-
Output Voltage1.8|3.3 V
-
Output Current15@1.8V|15@3.3V A
-
Efficiency87 %
-
Topology2-Switch Forward
