SamtecTSW-115-24-G-TEmbases de raccordement et réceptacles PCB

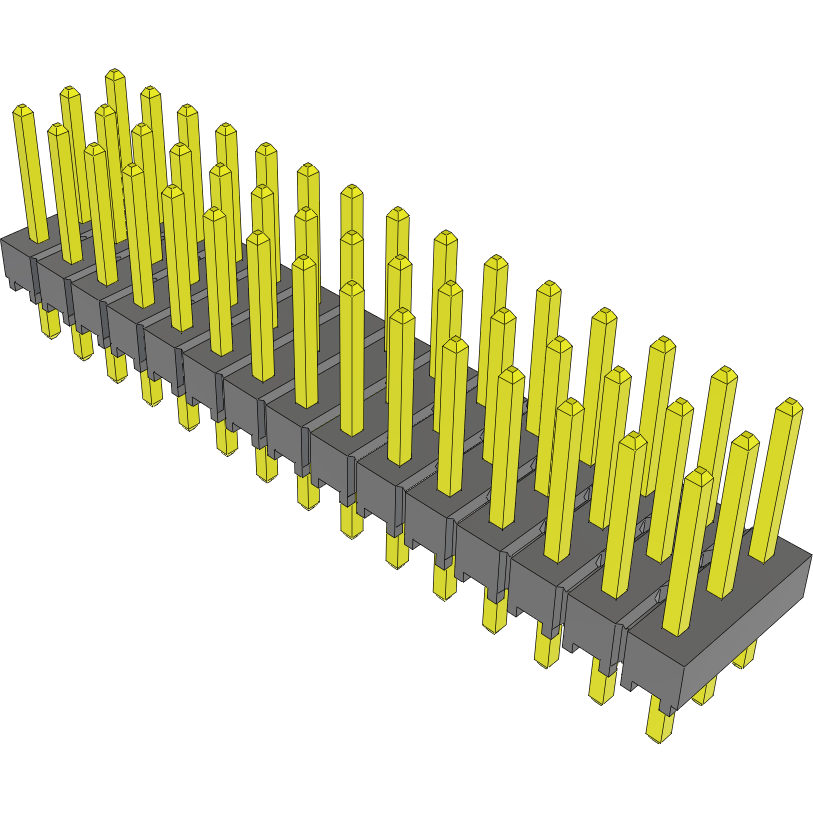

Use this unshrouded TSW-115-24-G-T header connector from Samtec where IDC ribbon cables are used. This HDR connector's 45 contacts that are made out of phosphor bronze and plated with gold over nickel. This is a 3-row connector. It has a maximum voltage rating of 550 VAC. It has a header type gender. It has a straight body orientation. Its pitch is 2.54 mm. This device has a maximum current rating of 6.3 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. This connector has an operating temperature of -55 to 125 °C. It uses the solder termination method. This product is 38.1 mm long, 9.27 mm tall and 7.62 mm deep. TSW-115-24-G-T is housed in black polyester.
