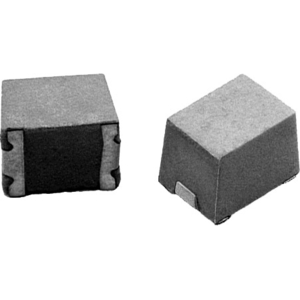

VishayISC1812ER220KInducteur à montage en surface
Inductor RF Chip Molded/Shielded Wirewound 22uH 10% 2.52MHz 50Q-Factor Powdered Iron 0.227A 1.36Ohm DCR 1812 T/R
| Compliant | |
| EAR99 | |
| Active | |
| 8504.50.80.00 | |
| Automotive | No |
| PPAP | No |
| RF Chip | |
| Wirewound | |
| Molded/Shielded | |
| Powdered Iron | |
| 22u | |
| 10% | |
| 2.52M | |
| 0.227 | |
| 1.36 | |
| 50 | |
| 2.52M | |
| 14M | |
| 2 | |
| 1812 | |
| -55 | |
| 125 | |
| Tape and Reel | |
| 4.7 | |
| Surface Mount | |
| 3.4 | |
| 3.4 |
An ideal space-saving electronic component is this rf chip ISC1812ER220K surface mount inductor from Vishay. This SMD inductor has an operating temperature range of -55 °C to 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. Its test frequency is 2.52M Hz, while its minimum self-resonant frequency is 14M Hz. It has an inductance of 22u H. This SMD inductor has a maximum DC current of 227m A with a maximum resistance of 1.36 Ohm. It has a tolerance of 10%. This product is 4.7 mm long, 3.4 mm tall and 3.4 mm deep. This device utilizes wirewound technology.
