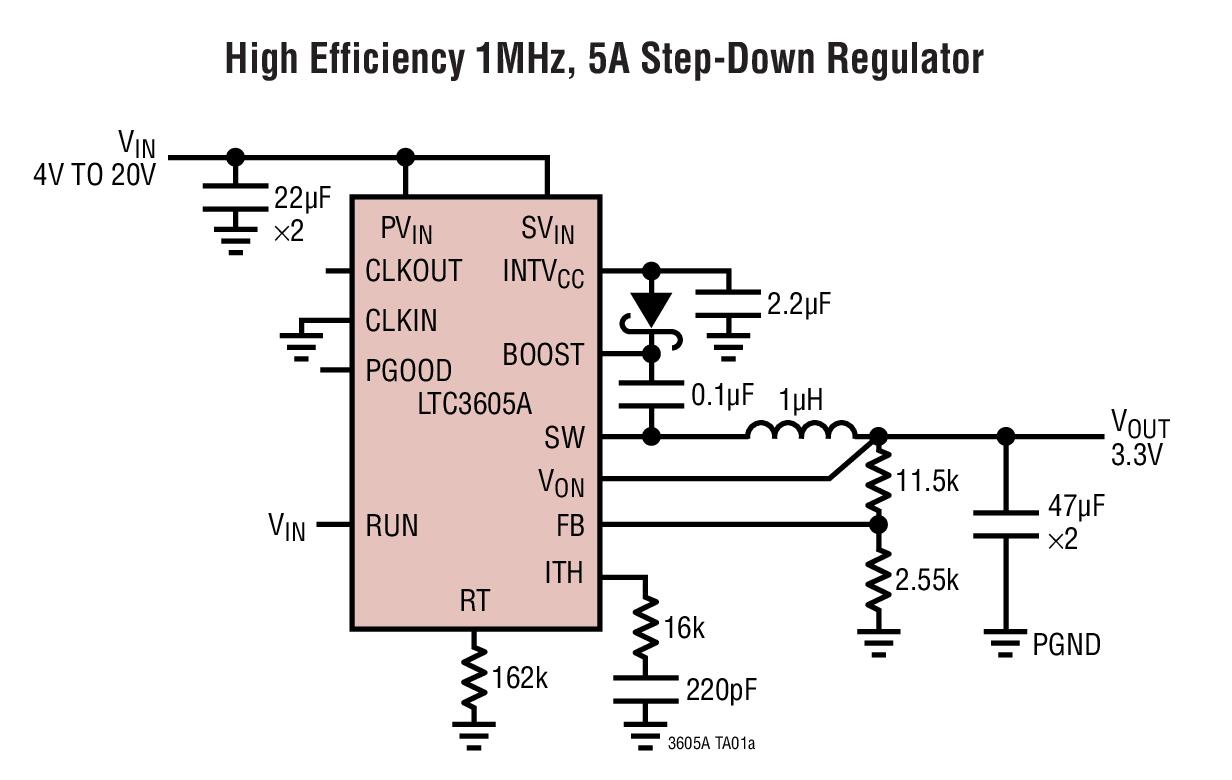

Typical Application for LTC3605A - 20V, 5A Synchronous Step-Down Regulator

Reference Design using part LTC3605A by Analog Devices

Enlarge
Image 1 / 1

Manufacturer

Analog Devices
  • Application Category
    Power Supplies
  • Product Type
    DC to DC Single Output Power Supplies

Associated Documents

For End Products

  • Battery Powered Equipment
  • Distributed Power System
  • PoE Power Supply
  • PoL Power Supply
  • Portable Instrumentation
  • Portable Medical Instrumentation
  • Power Supplies

Description

  • Typical Application for the LTC3605A is a high efficiency, monolithic synchronous buck regulator using a phase lockable controlled on-time constant frequency, current mode architecture

Key Features

  • Conversion Type
    DC to DC
  • Topology
    Buck

Featured Parts (4)

Featured Parts
Part Number Manufacturer Type Description
LTC3605AEUF#PBF Analog Devices DC to DC Converter and Switching Regulator Chip Conv DC-DC 4V to 20V Synchronous Step Down Single-Out 0.6V to 19.8V 5A 24-Pin QFN EP Tube Buy
LTC3605AIUF#PBF Analog Devices DC to DC Converter and Switching Regulator Chip Conv DC-DC 4V to 20V Synchronous Step Down Single-Out 0.6V to 19.8V 5A 24-Pin QFN EP Tube Buy
LTC3605AIUF#TRPBF Analog Devices DC to DC Converter and Switching Regulator Chip Conv DC-DC 4V to 20V Synchronous Step Down Single-Out 0.6V to 19.8V 5A 24-Pin QFN EP T/R Buy
LTC3605AEUF#TRPBF Analog Devices DC to DC Converter and Switching Regulator Chip Conv DC-DC 4V to 20V Synchronous Step Down Single-Out 0.6V to 19.8V 5A 24-Pin QFN EP T/R Buy
