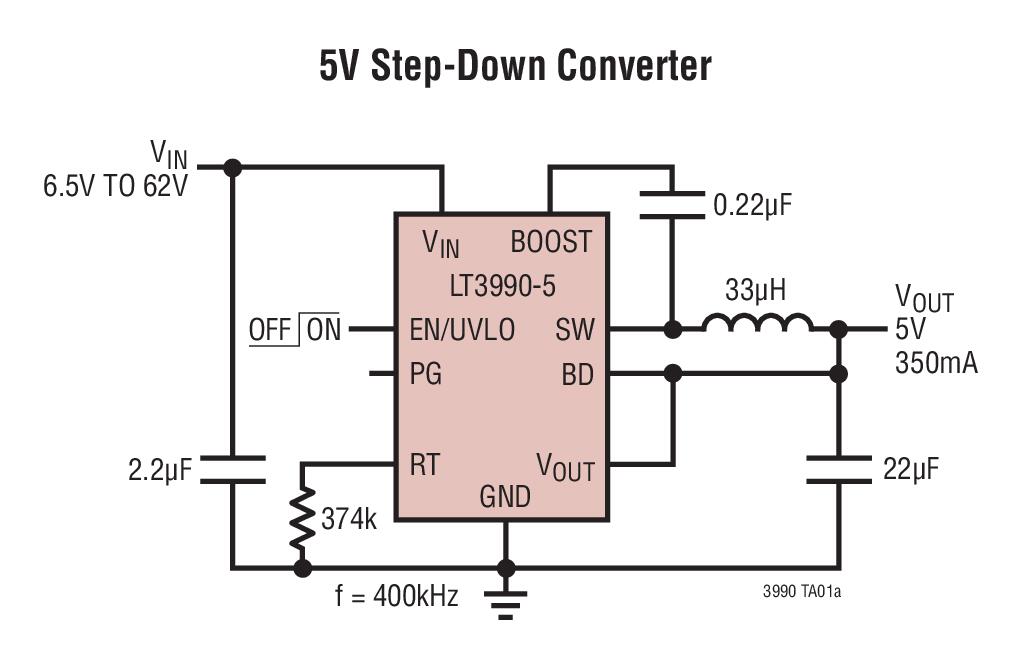

Typical Application for LT3990 - 62V, 350mA Step-Down Regulator with 2.5 uA Quiescent Current and Integrated Diodes

Reference Design using part LT3990 by Analog Devices

Enlarge
Image 1 / 1

Manufacturer

Analog Devices
  • Application Category
    Power Supplies
  • Product Type
    DC to DC Single Output Power Supplies

Associated Documents

For End Products

  • Automotive Battery
  • Industrial Supplies
  • Portable Power

Description

  • Typical Application for LT3990 - 62V, 350mA Step-Down Regulator with 2.5 uA Quiescent Current and Integrated Diodes. The LT3990 is an adjustable frequency monolithic buck switching regulator that accepts a wide input voltage range up to 62V, and consumes only 2.5uA of quiescent current. A high efficiency switch is included on the die along with the catch diode, boost diode, and the necessary oscillator, control and logic circuitry

Key Features

  • Conversion Type
    DC to DC
  • Input Voltage
    6.5 to 62 V
  • Output Voltage
    5 V
  • Topology
    Buck
