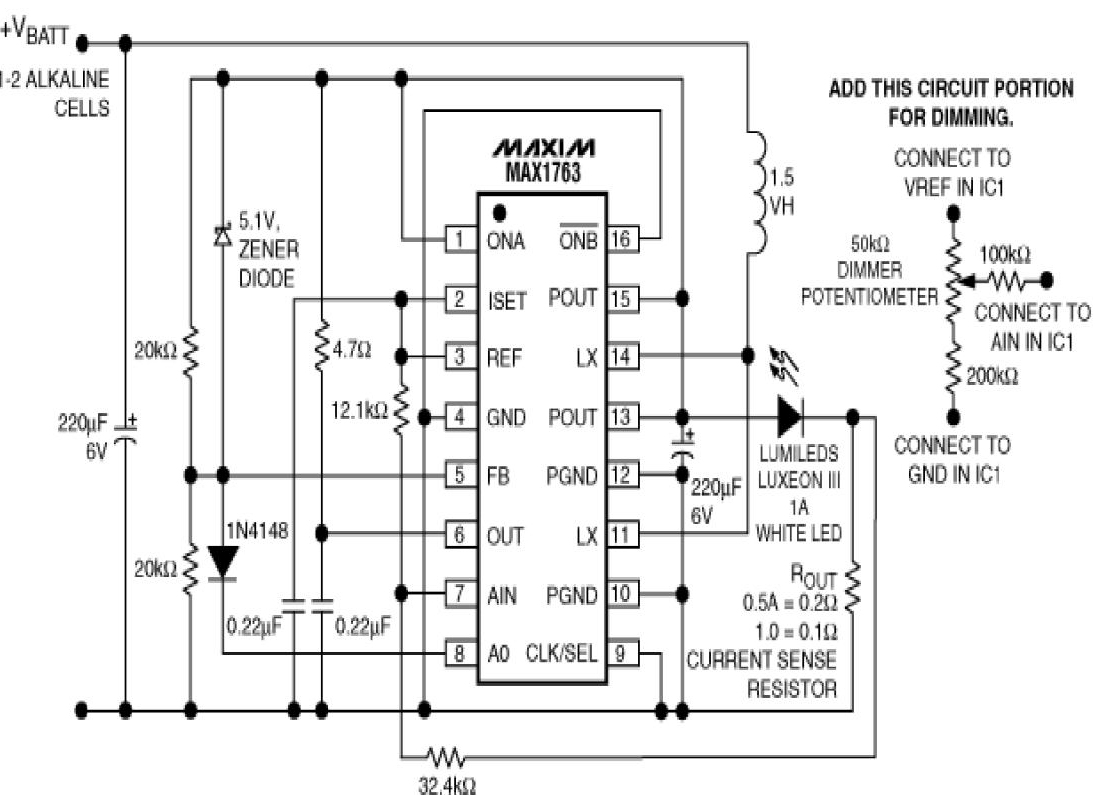

One LED High Powered LED Driver for LED Lighting

Reference Design using part MAX1763 by Analog Devices

Enlarge
Image 1 / 1

Manufacturer

Analog Devices
  • Application Category
    Lighting
  • Product Type
    High Powered LED Driver

For End Products

  • LED Lighting

Description

  • 1 Or 2 Alkaline Cells High Power White LED Driver

Key Features

  • Input Voltage
    0.8 to 3|1.5 to 3 V
  • Output Current
    0.5|1 A
  • Number of Derived Elements
    1

Featured Parts (8)

Featured Parts
Part Number Manufacturer Type Description
MAX1763EEE+T Analog Devices DC to DC Converter and Switching Regulator Chip Conv DC-DC 0.7V to 5.5V Synchronous Step Up Single-Out 2.5V to 5.5V/3.3V 1.5A 16-Pin QSOP T/R Buy
MAX1763EUE+ Analog Devices DC to DC Converter and Switching Regulator Chip Conv DC-DC 0.7V to 5.5V Synchronous Step Up Single-Out 2.5V to 5.5V/3.3V 1.5A 16-Pin TSSOP Tube Buy
MAX1763EEE+ Analog Devices DC to DC Converter and Switching Regulator Chip Conv DC-DC 0.7V to 5.5V Synchronous Step Up Single-Out 2.5V to 5.5V/3.3V 1.5A 16-Pin QSOP Tube Buy
MAX1763EEE+ Analog Devices DC to DC Converter and Switching Regulator Chip Conv DC-DC 0.7V to 5.5V Synchronous Step Up Single-Out 2.5V to 5.5V/3.3V 1.5A 16-Pin QSOP Tube Buy
MAX1763EUE+ Analog Devices DC to DC Converter and Switching Regulator Chip Conv DC-DC 0.7V to 5.5V Synchronous Step Up Single-Out 2.5V to 5.5V/3.3V 1.5A 16-Pin TSSOP Tube Buy
MAX1763EUE+T Analog Devices DC to DC Converter and Switching Regulator Chip Conv DC-DC 0.7V to 5.5V Synchronous Step Up Single-Out 2.5V to 5.5V/3.3V 1.5A 16-Pin TSSOP T/R Buy
MAX1763EUE+T Analog Devices DC to DC Converter and Switching Regulator Chip Conv DC-DC 0.7V to 5.5V Synchronous Step Up Single-Out 2.5V to 5.5V/3.3V 1.5A 16-Pin TSSOP T/R Buy
MAX1763EEE+T Analog Devices DC to DC Converter and Switching Regulator Chip Conv DC-DC 0.7V to 5.5V Synchronous Step Up Single-Out 2.5V to 5.5V/3.3V 1.5A 16-Pin QSOP T/R Buy
