LTC3407, High Efficiency 2.5V/600mA and 1.8V/600mA Regulators

Reference Design using part LTC3407 by Analog Devices

Enlarge
Image 1 / 1

Manufacturer

Analog Devices
  • Application Category
    Power Supplies
  • Product Type
    DC to DC Multi-Output Power Supplies

For End Products

  • FPGA Solutions

Description

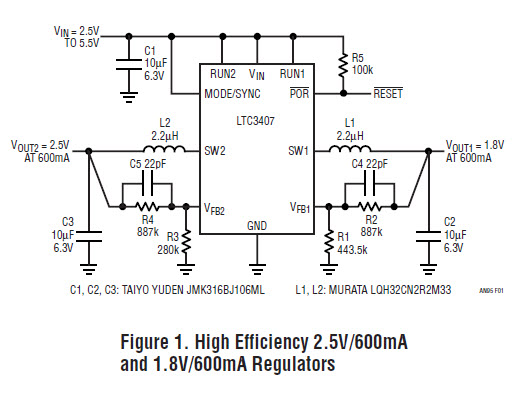

  • Circuit shows LTC3407 is a dual synchronous step-down DC/DC converter with integrated power switches. It provides a compact and high efficiency power solution for FPGA with supply currents up to 600mA. The switching regulator operates from a 2.5V to 5.5V input voltage range and has an adjustable output range from 0.6V to 5V

Key Features

  • Conversion Type
    DC to DC
  • Input Voltage
    2.5 to 5.5 V
  • Output Voltage
    1.8|2.5 V
  • Output Current
    0.6@1.8V|0.6@2.5V A
  • Efficiency
    96 %
  • Topology
    Buck

Featured Parts (10)

Featured Parts
Part Number Manufacturer Type Description
LTC3407EDD Analog Devices DC to DC Converter and Switching Regulator Chip Conv DC-DC 2.5V to 5.5V Synchronous Step Down Dual-Out 0.6V to 5V 0.6A/0.6A 10-Pin DFN EP Buy
LTC3407EDD#TRPBF Analog Devices DC to DC Converter and Switching Regulator Chip Conv DC-DC 2.5V to 5.5V Synchronous Step Down Dual-Out 0.6V to 5V 0.6A/0.6A 10-Pin DFN EP T/R Buy
LTC3407EMSE#TRPBF Analog Devices DC to DC Converter and Switching Regulator Chip Conv DC-DC 2.5V to 5.5V Synchronous Step Down Dual-Out 0.6V to 5V 0.6A/0.6A 10-Pin MSOP EP T/R Buy
LTC3407AIDD#PBF Analog Devices DC to DC Converter and Switching Regulator Chip Conv DC-DC 2.5V to 5.5V Synchronous Step Down Dual-Out 0.6V to 5V 0.6A/0.6A 10-Pin DFN EP Tube Buy
LTC3407EDD#TR Analog Devices DC to DC Converter and Switching Regulator Chip Conv DC-DC 2.5V to 5.5V Synchronous Step Down Dual-Out 0.6V to 5V 0.6A/0.6A 10-Pin DFN EP T/R Buy
LTC3407EMSE#PBF Analog Devices DC to DC Converter and Switching Regulator Chip Conv DC-DC 2.5V to 5.5V Synchronous Step Down Dual-Out 0.6V to 5V 0.6A/0.6A 10-Pin MSOP EP Tube Buy
LTC3407AIMSE#TRPBF Analog Devices DC to DC Converter and Switching Regulator Chip Conv DC-DC 2.5V to 5.5V Synchronous Step Down Dual-Out 0.6V to 5V 0.6A/0.6A 10-Pin MSOP EP T/R Buy
LTC3407EDD#PBF Analog Devices DC to DC Converter and Switching Regulator Chip Conv DC-DC 2.5V to 5.5V Synchronous Step Down Dual-Out 0.6V to 5V 0.6A/0.6A 10-Pin DFN EP Tube Buy
LTC3407AIMSE#PBF Analog Devices DC to DC Converter and Switching Regulator Chip Conv DC-DC 2.5V to 5.5V Synchronous Step Down Dual-Out 0.6V to 5V 0.6A/0.6A 10-Pin MSOP EP Tube Buy
LTC3407AIDD#TRPBF Analog Devices DC to DC Converter and Switching Regulator Chip Conv DC-DC 2.5V to 5.5V Synchronous Step Down Dual-Out 0.6V to 5V 0.6A/0.6A 10-Pin DFN EP T/R Buy
