LT8336 DC to DC Converter and Switching Regulator Chip 23.25V to 24.75V Output Demonstration Circuit
The LT8336 is a low IQ, synchronous step-up DC/DC converter. It features Silent Switcher architecture and optional spread spectrum frequency modulation to minimize EMI emissions while delivering high efficiencies at high switching frequencies.
Key Features and Benefits
● Pass-Thru mode minimizes Vin-to-Vout voltage drop to improve efficiency, while maintaining ultra-low quiescent current (IQ).
● Low EMI Silent Switcher® architecture with spread spectrum meets CISPR25 conducted and radiated emissions standard.
● 3MHz switching frequency reduces component size.
Applications
● Automotive: Pre-Boost and PassThru™ capabilities for automotive cold crank
● General Purpose: Ins 3D Printers, Military Radar, SCADA
● Industrial Automation: Process Controls, Bar Code Readers, Vibrometers, Irrigation controller, Satellite Buoys
● Healthcare: Medical/X-ray imaging
Evaluation Board

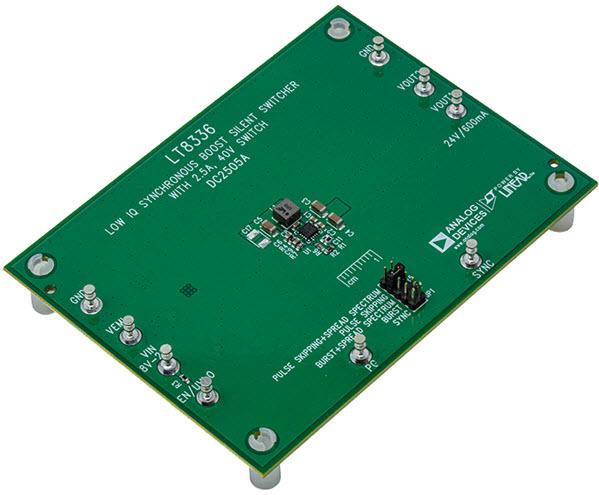

The LT8336 can be evaluated with the DC2505A.
Block Diagrams and Tables
Featured Products
| Compliant | |
| EAR99 | |
| Active | |
| 8473.30.11.80 | |
| Automotive | No |
| PPAP | No |
| Demonstration Circuit | |
| DC to DC Converter and Switching Regulator Chip | |
| 1 | |
| 23.25 to 24.75 | |
| 1500|1200|900|600 | |
| 8VDC to 20VDC | |
| 2000 | |
| 94 | |
| LT8336 |
