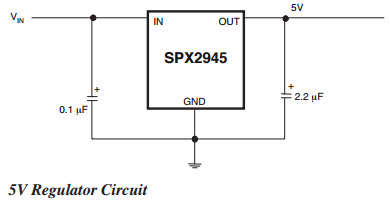

Typical Application for SPX2945 400mA, 5V Low-Dropout Voltage Regulator

使用 MaxLinear 的 SPX2945 的参考设计

放大
Image 1 / 1

供应商

MaxLinear
  • 应用类别
    电源
  • 产品类别
    直流到直流单输出电源

依据最终产品

  • Battery-Powered Applications
  • Cordless Phone
  • Portable Computers
  • Radio Control System

说明

  • Typical Application for SPX2945 400mA, 5V Low-Dropout Voltage Regulator. The SPX2945 is a low power voltage regulator. This device is an excellent choice for use in battery-powered applications such as cordless telephones, radio control systems, and portable computers. The SPX2945 features very low quiescent current (100 uA) and very low dropout voltage

主要特色

  • Conversion Type
    DC to DC
  • Topology
    LDO

Featured Parts (1)

Featured Parts
零件编号 供应商 类别 说明
SPX2945M3-L-3-3/TR MaxLinear Linear Regulators LDO Regulator Pos 3.3V 0.4A 4-Pin(3+Tab) SOT-223 T/R 买入
