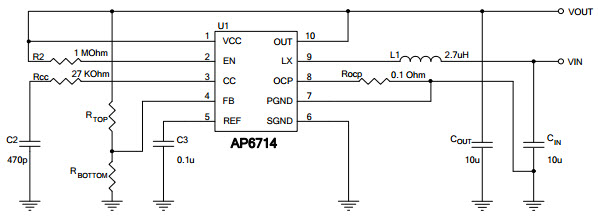

Typical Application for AP6714 1.8Mhz Synchronous Boost Converter

使用 Diodes Incorporated 的 AP6714 的参考设计

放大
Image 1 / 1

供应商

Diodes Incorporated
  • 应用类别
    电源
  • 产品类别
    直流到直流单输出电源

依据最终产品

  • Battery-Powered Applications
  • Battery-Powered Devices
  • Cellular Phone
  • Digital Camera
  • MP3 Player
  • Personal Digital Assistant

说明

  • Typical Application for AP6714 1.8Mhz Synchronous Boost Converter. The AP6714 is fully integrated synchronous current mode boost converter which provides a complete power supply solution for all one-cell, two-cell, three cell, alkaline, NiCd or NiMh or single-cell Lithion battery powered products

主要特色

  • Conversion Type
    DC to DC
  • Topology
    Boost

Featured Parts (1)

Featured Parts
零件编号 供应商 类别 说明
AP6714M10G-13 Diodes Incorporated DC to DC Converter and Switching Regulator Chip Conv DC-DC 0.9V to 5.5V Synchronous Step Up Single-Out 1.8V to 5.5V 1.6A 10-Pin MSOP T/R 买入
