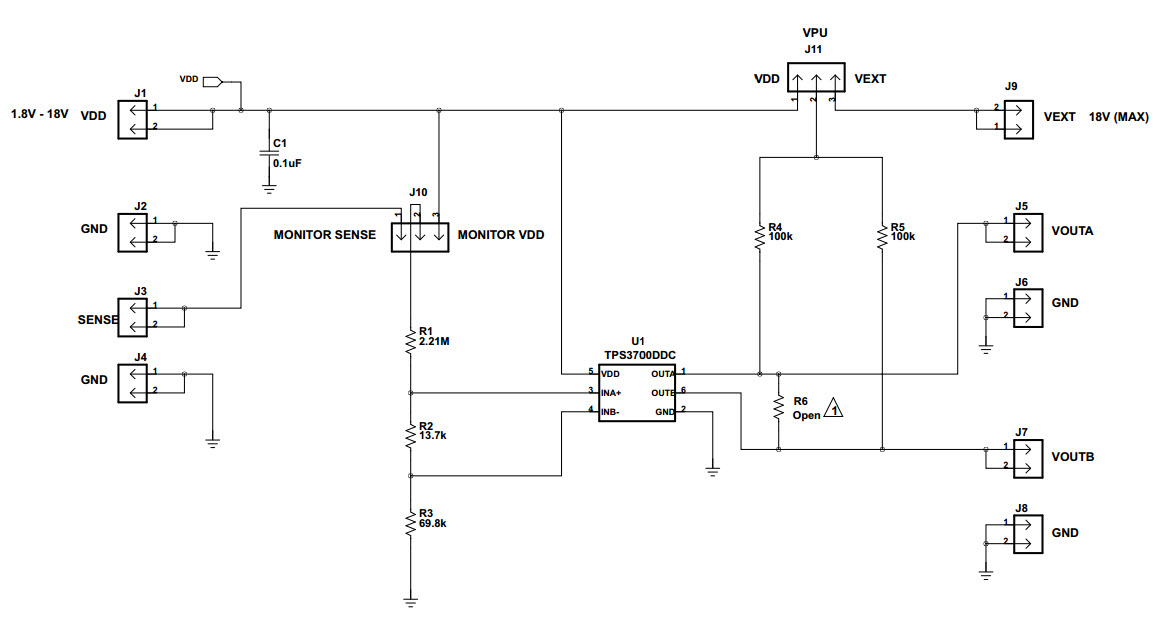

TPS3700EVM-114, Evaluation Module for TPS3700 Window Comparator for Over and Under Voltage Detection
使用 Texas Instruments 的 TPS3700DDC 的参考设计
1 / 2
相关文件
依据最终产品
- Automotive and Transportation
- Desktop PC
- Electrocardiograph Battery Powered
- Embedded PC
- FPGA Solutions
- Industrial Control
- Notebook
- Portable
说明
- TPS3700EVM-114, TPS3700EVM-114, Evaluation Module helps designers evaluate the performance of the TPS3700 High Voltage (18V), Window Comparator with Over- and Under voltage Detection. The EVM contains an IC for over- and under voltage monitoring and header connectors for easy connection to external test and application circuitry
主要特色
-
Number of SuppliesTriple
-
Supply Voltage1.8 to 18 V
Featured Parts (3)
| 零件编号 | 供应商 | 类别 | 说明 | |||
|---|---|---|---|---|---|---|
|
TPS3700DDCR | Texas Instruments | Supervisory Circuits | Processor Supervisor 0.4V 2 Active Low/Open Drain 6-Pin TSOT-23 T/R | 买入 | |
|
|
TPS3700DDCT | Texas Instruments | Supervisory Circuits | Processor Supervisor 0.4V 2 Active Low/Open Drain 6-Pin TSOT-23 T/R | 买入 | |
|
|
TPS3700DDCR2 | Texas Instruments | Supervisory Circuits | Processor Supervisor 0.4V 2 Active Low/Open Drain 6-Pin TSOT-23 T/R | 买入 | |
