PMP9353, Altera Cyclone V SoC FPGA Power Reference Design
使用 Texas Instruments 的 LM3880MF-1AA 的参考设计
1 / 5
说明

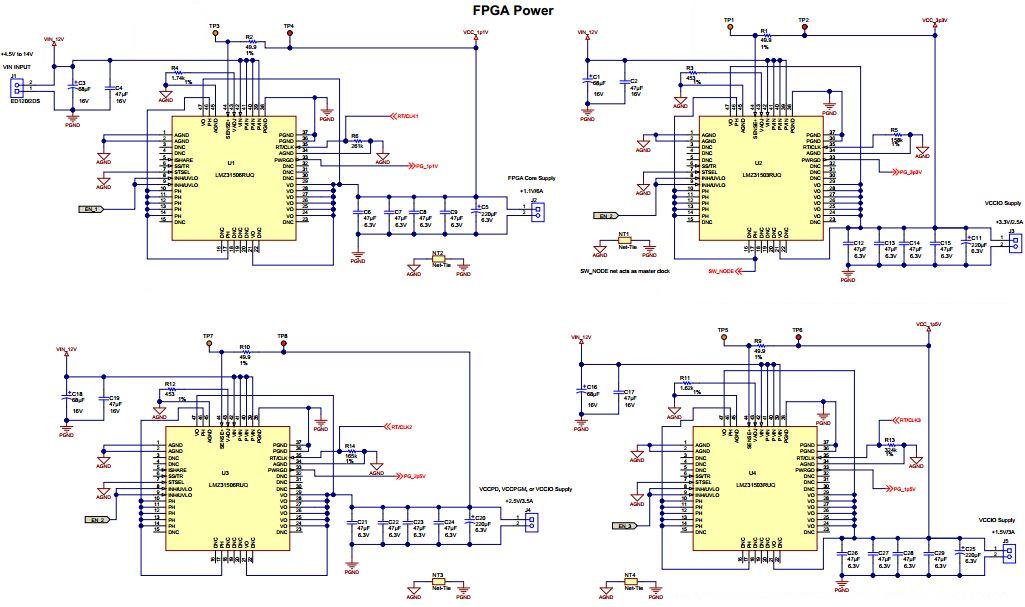

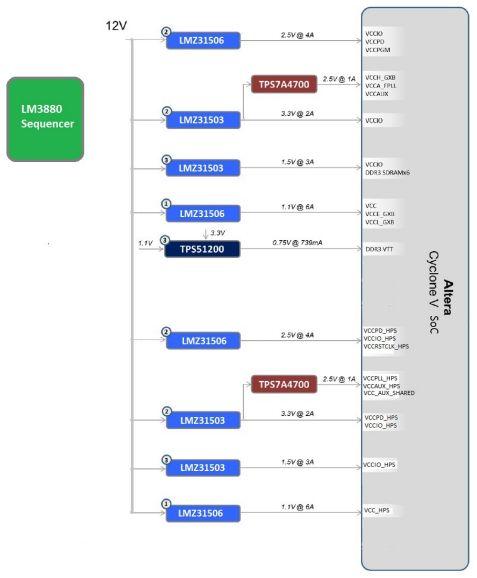

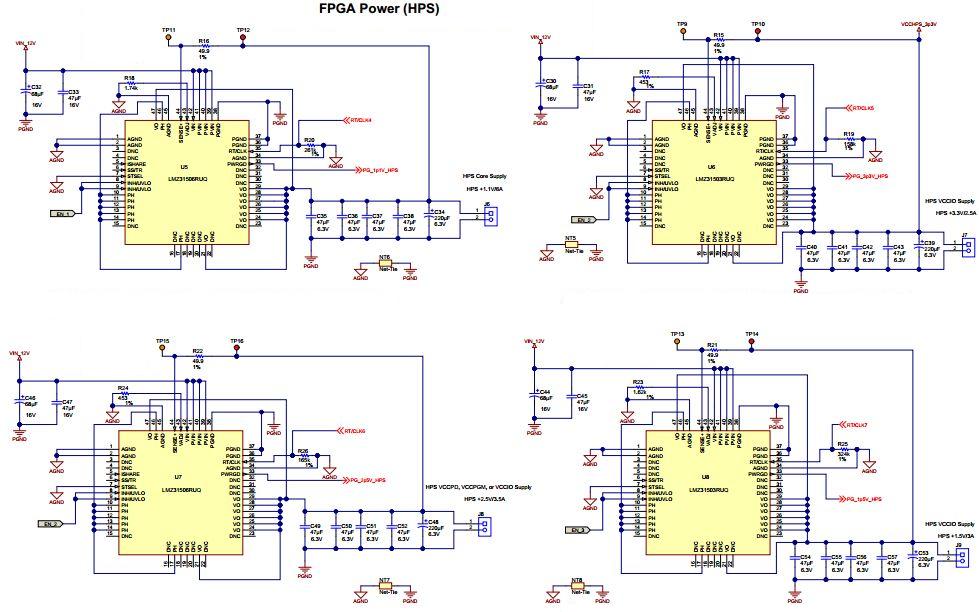

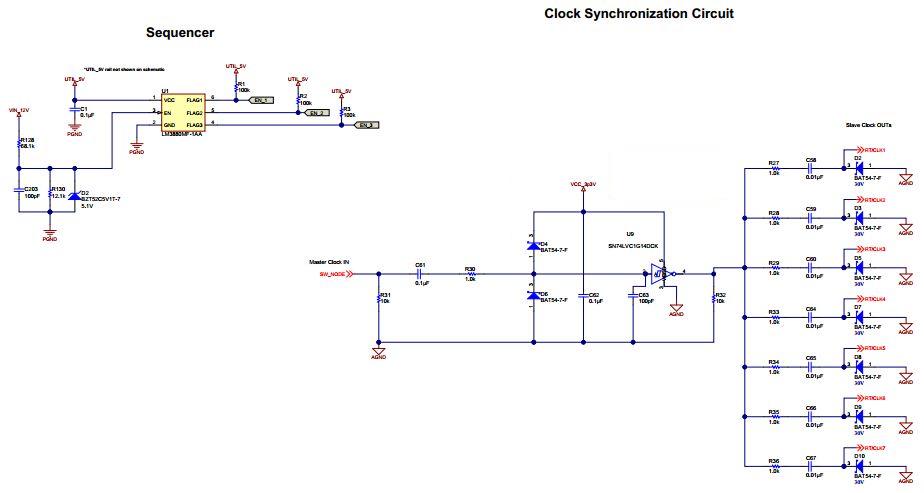

- PMP9353, Altera Cyclone V SoC FPGA Power Reference Design. The PMP9353 reference design is a complete power solution for Altera Cyclone V SoC devices. This design uses several LMZ3 series modules, two LDOs and a DDR termination regulator to provide all the necessary rails to power the SoC chip. This design also shows correct power-up sequencing
