PMP4502, PoE sourcing (PSE) 48V@1A
使用 Texas Instruments 的 TPS40210DGQ 的参考设计
1 / 1
依据最终产品
- Communications and Telecom
- Power Over Ethernet
说明

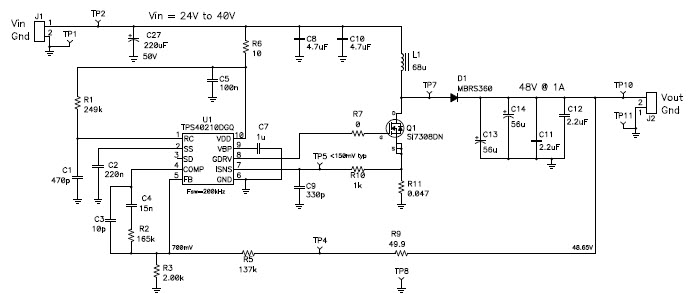

- PMP4502, PoE sourcing (PSE) 48V@1A. Simple boost converter to provide 48V @1A out of 24V to 40V on universal board
主要特色
-
Conversion TypeDC to DC
-
Input Voltage24 to 40 V
-
Output Voltage48 V
-
Output Current1 A
-
Output Power48 W
-
TopologyBoost- Non Sync|PoE
Featured Parts (2)
| 零件编号 | 供应商 | 类别 | 说明 | |||
|---|---|---|---|---|---|---|
|
TPS40210DGQ | Texas Instruments | DC to DC Controllers | DC/DC Cntrlr Single-OUT Step Up 1000kHz 10-Pin HVSSOP EP Tube | 买入 | |
|
|
TPS40210 | Texas Instruments | DC to DC Controllers | DC/DC Cntrlr Single-OUT Step Up 1000kHz 10-Pin HVSSOP EP Tube | 买入 | |
