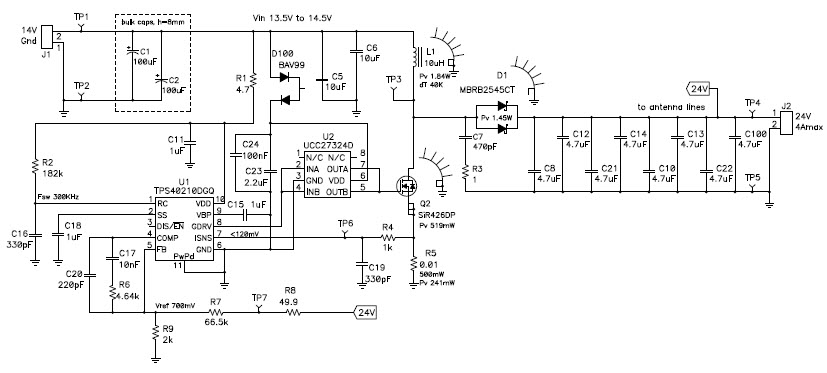

PMP4741, 24V @ 4A Boost w/ TPS40210
使用 Texas Instruments 的 TPS40210DGQ 的参考设计
1 / 1
依据最终产品
- Communications and Telecom
说明
- PMP4741, 24V @ 4A Boost w/ TPS40210. 100W lowest profile boost converter to supply sensitive, but constant RF load
主要特色
-
Conversion TypeDC to DC
-
Input Voltage13.5 to 14.5 V
-
Output Voltage24 V
-
Output Current4 A
-
Output Power96 W
-
TopologyBoost- Non Sync
Featured Parts (2)
| 零件编号 | 供应商 | 类别 | 说明 | |||
|---|---|---|---|---|---|---|
|
TPS40210DGQ | Texas Instruments | DC to DC Controllers | DC/DC Cntrlr Single-OUT Step Up 1000kHz 10-Pin HVSSOP EP Tube | 买入 | |
|
|
TPS40210 | Texas Instruments | DC to DC Controllers | DC/DC Cntrlr Single-OUT Step Up 1000kHz 10-Pin HVSSOP EP Tube | 买入 | |
