LMZ30606EVM-003, Simple Switcher 6A Synchronous Buck Power Module Evaluation Board

使用 Texas Instruments 的 LMZ30606RKG 的参考设计

放大

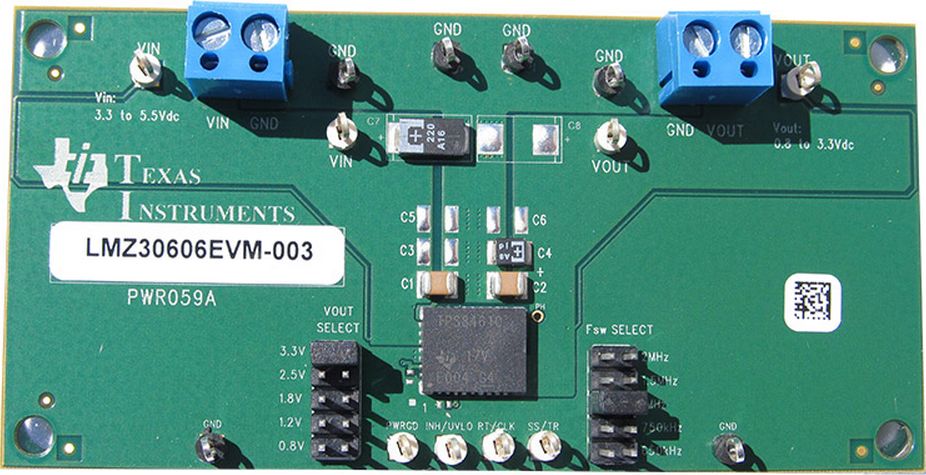

LMZ30606EVM Image (Sheet 1 of 2)

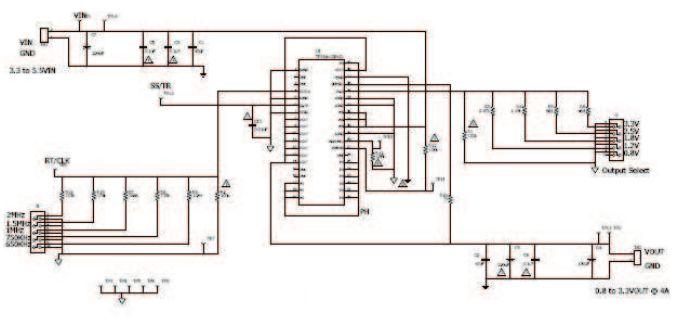

LMZ3060xEVM Schematic (Sheet 2 of 2)
Image 1 / 2

供应商

Texas Instruments
  • 应用类别
    电源
  • 产品类别
    直流到直流多输出电源
买入

依据最终产品

  • Automatic Test Equipment
  • Backplane Distributed Power
  • Communications and Telecom
  • FPGA Solutions
  • Portable Medical Devices
  • WiMAX/Wireless Broadband

说明

  • LMZ30606EVM-003, is a fully assembled and tested circuit for evaluating the LMZ30606, 6A SIMPLE SWITCHER Power Module Solution. The output voltage can be selected from four preset values using a jumper (3.3V, 2.5V, 1.8V, 1.2V, and 0.8V) and has an adjustable switching frequency of 500 kHz to 1 MHz. Solder pads and jumpers are available to configure the EVM to specific requirements

主要特色

  • Conversion Type
    DC to DC
  • Input Voltage
    2.95 to 6 V
  • Output Voltage
    0.8|1.2|1.8|2.5|3.3 V
  • Output Current
    6 A
  • Topology
    Buck

Featured Parts (2)

Featured Parts
零件编号 供应商 类别 说明
LMZ30606RKGR Texas Instruments DC to DC Converter and Switching Regulator Module Module DC-DC 1-OUT 0.8V to 3.6V 6A 39-Pin B1QFN T/R 买入
LMZ30606RKGT Texas Instruments DC to DC Converter and Switching Regulator Module Module DC-DC 1-OUT 0.8V to 3.6V 6A 39-Pin B1QFN T/R 买入
