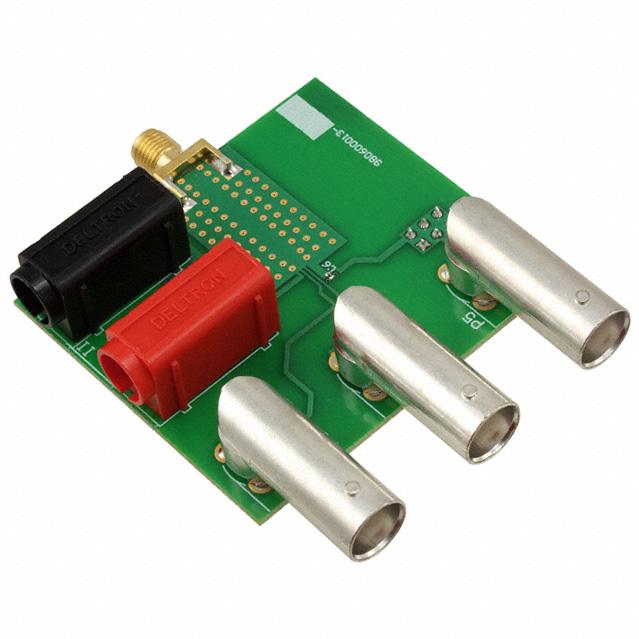

LMV221EVAL/NOPB, Evaluation Board for the LMV221 Logarithmic Power Detector
使用 Texas Instruments 的 LMV221SD 的参考设计
1 / 2
依据最终产品
- Digital Power Control
- Wireless LAN
说明
- LMV221EVAL/NOPB, Evaluation Board for the LMV221 Logarithmic Power Detector. This board simplifies the measurement of the DC output voltage that the LMV221 produces in response to the power level of the RF signal applied to the RF input. Use the evaluation board as a guide for high frequency layout and as a tool to aid in device testing and characterization
主要特色
-
Operating Frequency50 to 3500 MHz
Featured Parts (4)
| 零件编号 | 供应商 | 类别 | 说明 | |||
|---|---|---|---|---|---|---|
|
LMV221SD/NOPB | Texas Instruments | RF Detectors | RF Detector 50MHz to 3500MHz -5dBm 6-Pin WSON EP T/R | 买入 | |
|
|
LMV221SDX/NOPB | Texas Instruments | RF Detectors | RF Detector 50MHz to 3500MHz -5dBm 6-Pin WSON EP T/R | 买入 | |
|
|
LMV221SDX/NOPB | Texas Instruments | RF Detectors | RF Detector 50MHz to 3500MHz -5dBm 6-Pin WSON EP T/R | 买入 | |
|
|
LMV221SD/NOPB | Texas Instruments | RF Detectors | RF Detector 50MHz to 3500MHz -5dBm 6-Pin WSON EP T/R | 买入 | |
