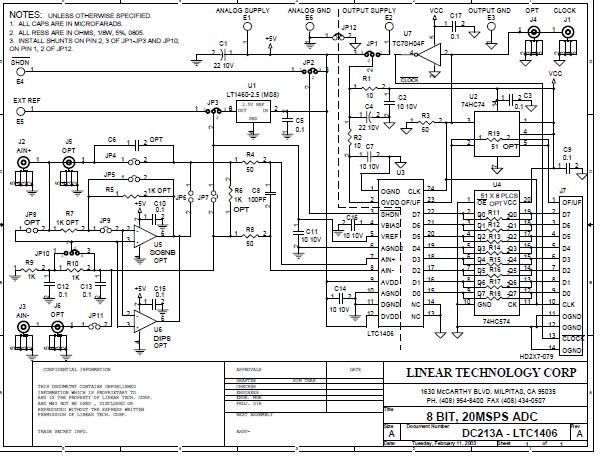

DC213A, Demo Board for featuring LTC1406 Low Power, 8-Bit, 20Msps, Sampling A/D Converter
使用 Analog Devices 的 LTC1406CGN 的参考设计
1 / 1
相关文件
依据最终产品
- Data Acquisition System
- Industrial
- Motion Motor Control
- Power Supplies
说明
- DC213A, Demo Board for featuring LTC1406 Low Power, 8-Bit, 20Msps, Sampling A/D Converter
主要特色
-
ADC Resolution8 Bit
-
ADC Sampling Rate20M SPS
-
Number of Channels1CH
Featured Parts (6)
| 零件编号 | 供应商 | 类别 | 说明 | |||
|---|---|---|---|---|---|---|
|
LT1460CCMS8-2.5 | Analog Devices | Voltage References | V-Ref Precision 2.5V 20mA 8-Pin MSOP | 买入 | |
|
|
LT1460CCMS8-2.5#PBF | Analog Devices | Voltage References | V-Ref Precision 2.5V 20mA 8-Pin MSOP Tube | 买入 | |
|
NC7SZ04M5X | onsemi | Inverters and Schmitt Triggers | Inverter 1-Element 5-Pin SC-74A T/R | 买入 | |
|
|
LT1460CCMS8-2.5#TRPBF | Analog Devices | Voltage References | V-Ref Precision 2.5V 20mA 8-Pin MSOP T/R | 买入 | |
|
LTC1406CGN#PBF | Analog Devices | Analog to Digital Converters - ADCs | 1-Channel Single ADC Pipelined 20Msps 8-bit Parallel 24-Pin SSOP N Tube | 买入 | |
|
|
LTC1406CGN#TRPBF | Analog Devices | Analog to Digital Converters - ADCs | 1-Channel Single ADC Pipelined 20Msps 8-bit Parallel 24-Pin SSOP N T/R | 买入 | |
