AVR481, DB101 is a Graphical LCD Module Application Circuit
使用 Microchip Technology 的 ATmega1281V-8MU 的参考设计
1 / 3
相关文件
依据最终产品
- Displays and Monitors
说明

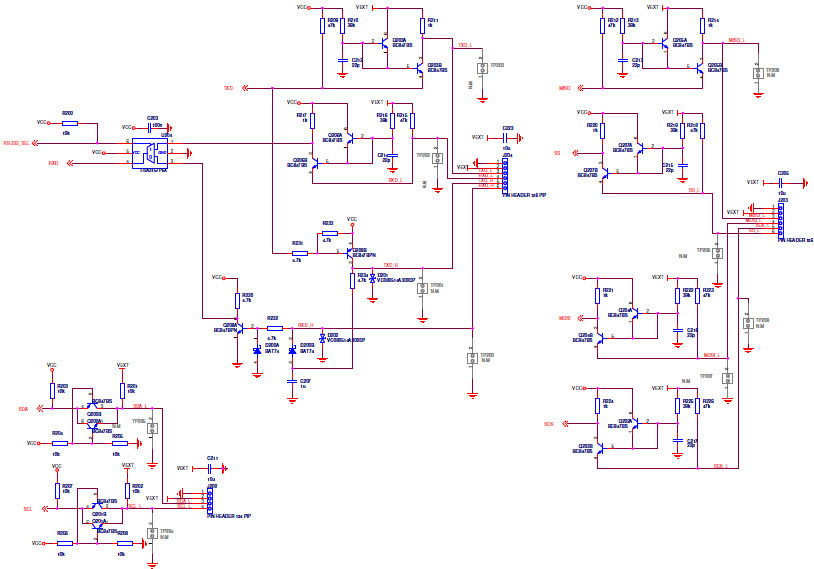

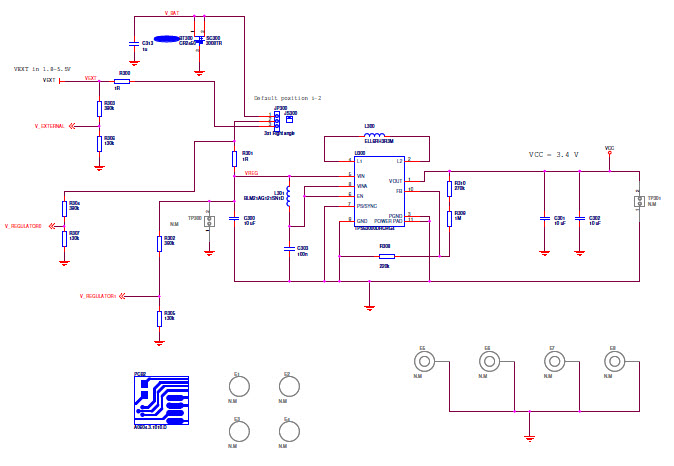

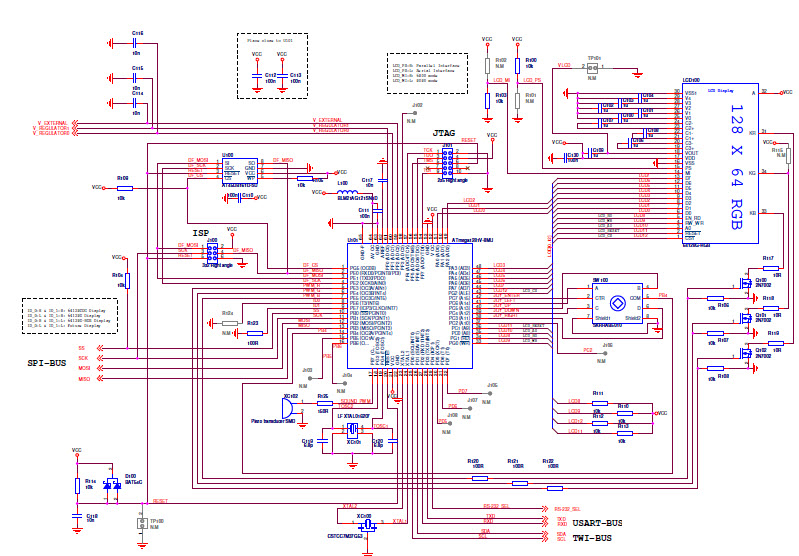

- AVR481, DB101 is a Graphical LCD Module Application Circuit. It demonstrates how to use an AVR microcontroller to control a 128x64 pixel graphical LCD. It can be used as human-machine interface in conjunction with other application boards: To interface other application boards the DB101 features the most common communication interfaces UART, SPI and TWI, available on pin headers on the backside of the board
主要特色
-
Embedded System TypeMCU
-
Family NameAtmega
-
Core ProcessorAVR
Featured Parts (4)
| 零件编号 | 供应商 | 类别 | 说明 | |||
|---|---|---|---|---|---|---|
|
TPS63000DRCRG4 | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 1.8V to 5.5V Synchronous Step Down/Synchronous Step Up Single-Out 1.2V to 5.5V 1.2A 10-Pin VSON EP T/R | 买入 | |
|
SKRHABE010 | ALPS ALPINE CO., LTD | Switch Tactile | Switch Tactile Square Plunger J-Lead 0.05A 12VDC 1.23N SMD T/R | 买入 | |
|
ATMEGA1281V-8MU | Microchip Technology | Microcontrollers - MCUs | MCU 8-bit AVR RISC 128KB Flash 2.5V/3.3V/5V 64-Pin VQFN EP Tray | 买入 | |
|
|
ATMEGA1281V-8MUR | Microchip Technology | Microcontrollers - MCUs | MCU 8-bit AVR RISC 128KB Flash 2.5V/3.3V/5V 64-Pin VQFN EP T/R | 买入 | |
