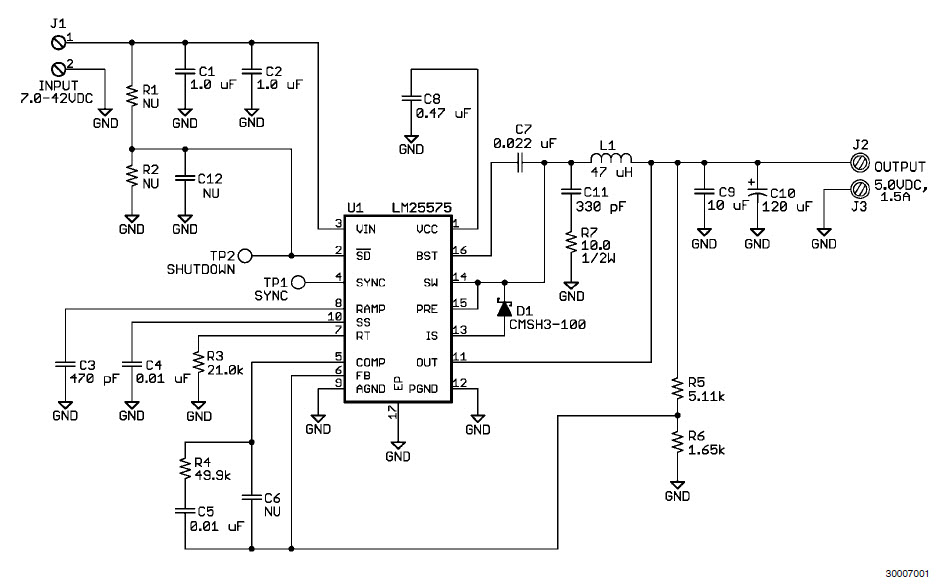

5V DC to DC Single Output Power Supply for Automotive
使用 Texas Instruments 的 LM25575 的参考设计
1 / 1
相关文件
依据最终产品
- Automotive and Transportation
- Industrial
说明
- LM25575 evaluation board is designed to provide design engineer with a fully functional power converter based on Emulated Current Mode Control to evaluate LM25575 regulator IC
主要特色
-
Conversion TypeDC to DC
-
Input Voltage7 to 42 V
-
Output Voltage5 V
-
Output Current0 to 1.5 A
-
Efficiency91 %
-
TopologyBuck
Featured Parts (4)
| 零件编号 | 供应商 | 类别 | 说明 | |||
|---|---|---|---|---|---|---|
|
LM25575MHX/NOPB | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 6V to 42V Synchronous Step Down Single-Out 1.225V to 40V 1.5A 16-Pin HTSSOP EP T/R | 买入 | |
|
|
LM25575MH/NOPB | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 6V to 42V Synchronous Step Down Single-Out 1.23V to 40V 1.5A 16-Pin HTSSOP EP Tube | 买入 | |
|
|
LM25575MHX/NOPB | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 6V to 42V Synchronous Step Down Single-Out 1.225V to 40V 1.5A 16-Pin HTSSOP EP T/R | 买入 | |
|
|
LM25575MH/NOPB | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 6V to 42V Synchronous Step Down Single-Out 1.23V to 40V 1.5A 16-Pin HTSSOP EP Tube | 买入 | |
