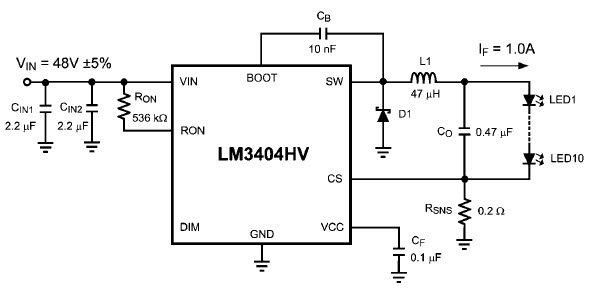

3W, 10-LEDs High Powered LED Driver for Automotive Lighting

使用 Texas Instruments 的 LM3404HVMR 的参考设计

放大
Image 1 / 1

供应商

Texas Instruments
  • 应用类别
    照明
  • 产品类别
    高功率发光二极管驱动器

相关文件

依据最终产品

  • Automotive Lighting
  • Illumination
  • Industrial LED Lighting

说明

  • LM3404/04HV is a buck-regulator designed for driving high powered LEDs at forward currents of up to 1.0A. LED drivers often experience thermal conditions that are extreme even by standards of switching converters

主要特色

  • Input Voltage
    48 V
  • Output Current
    1 A
  • Output Power
    3 W
  • Number of Derived Elements
    10

Featured Parts (4)

Featured Parts
零件编号 供应商 类别 说明
LM3404HVMR/NOPB Texas Instruments LED Drivers LED Driver 1 Segment 8-Pin HSOIC EP Tube 买入
LM3404HVMRX/NOPB Texas Instruments LED Drivers LED Driver 1 Segment 8-Pin HSOIC EP T/R 买入
LM3404HVMRX/NOPB Texas Instruments LED Drivers LED Driver 1 Segment 8-Pin HSOIC EP T/R 买入
LM3404HVMR/NOPB Texas Instruments LED Drivers LED Driver 1 Segment 8-Pin HSOIC EP Tube 买入
