SamtecTSW-109-09-G-S-RAPiastre connettori e prese PCB

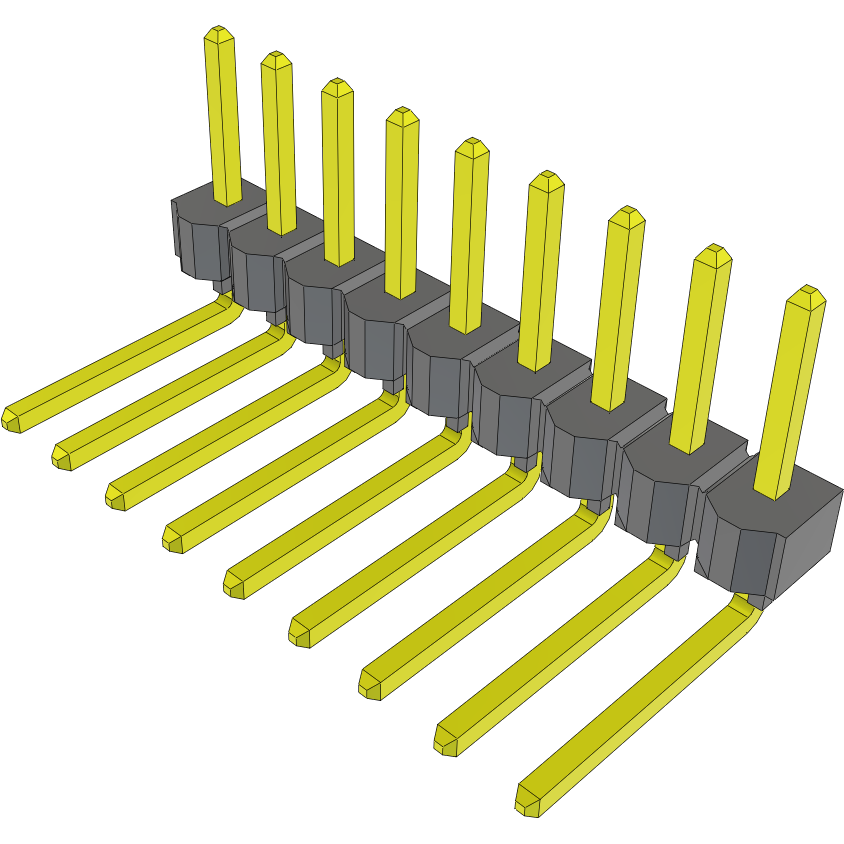

As an added safety precaution, the unshrouded TSW-109-09-G-S-RA header connector from Samtec will prevent and protect components on your circuit board from accidentally touching each other. This HDR connector's 9 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a maximum voltage rating of 450 VAC. It has a header type gender. This is a 1-row connector. It has a right angle body orientation. Its pitch is 2.54 mm. This device has a maximum current rating of 6.3 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. It uses the solder termination method. This connector has an operating temperature of -55 to 125 °C. TSW-109-09-G-S-RA is housed in black polyester. This product is 22.86 mm long, 3.02 mm tall and 9.9 mm deep.
