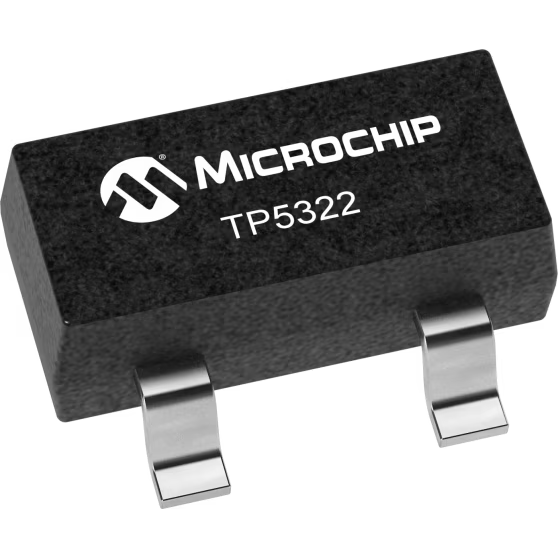

Microchip TechnologyTP5322K1-GMOSFETs
Trans MOSFET P-CH Si 220V 0.12A 3-Pin SOT-23 T/R
| Compliant | |
| EAR99 | |
| Active | |
| 8541.29.00.95 | |
| Automotive | No |
| PPAP | No |
| Power MOSFET | |
| Si | |
| Single | |
| Enhancement | |
| P | |
| 1 | |
| 220 | |
| ±20 | |
| 0.12 | |
| 12000@10V | |
| 110(Max)@25V | |
| 360 | |
| 15 | |
| 15 | |
| 20 | |
| 10 | |
| -55 | |
| 150 | |
| Tape and Reel | |
| Mounting | Surface Mount |
| Package Height | 0.95 |
| Package Width | 1.3 |
| Package Length | 2.9 |
| PCB changed | 3 |
| Standard Package Name | SOT |
| Supplier Package | SOT-23 |
| 3 | |
| Lead Shape | Gull-wing |
Use Microchip Technology's TP5322K1-G power MOSFET to switch quickly between different electronic signals with ease. Its maximum power dissipation is 360 mW. This MOSFET transistor has a minimum operating temperature of -55 °C and a maximum of 150 °C. This P channel MOSFET transistor operates in enhancement mode.
