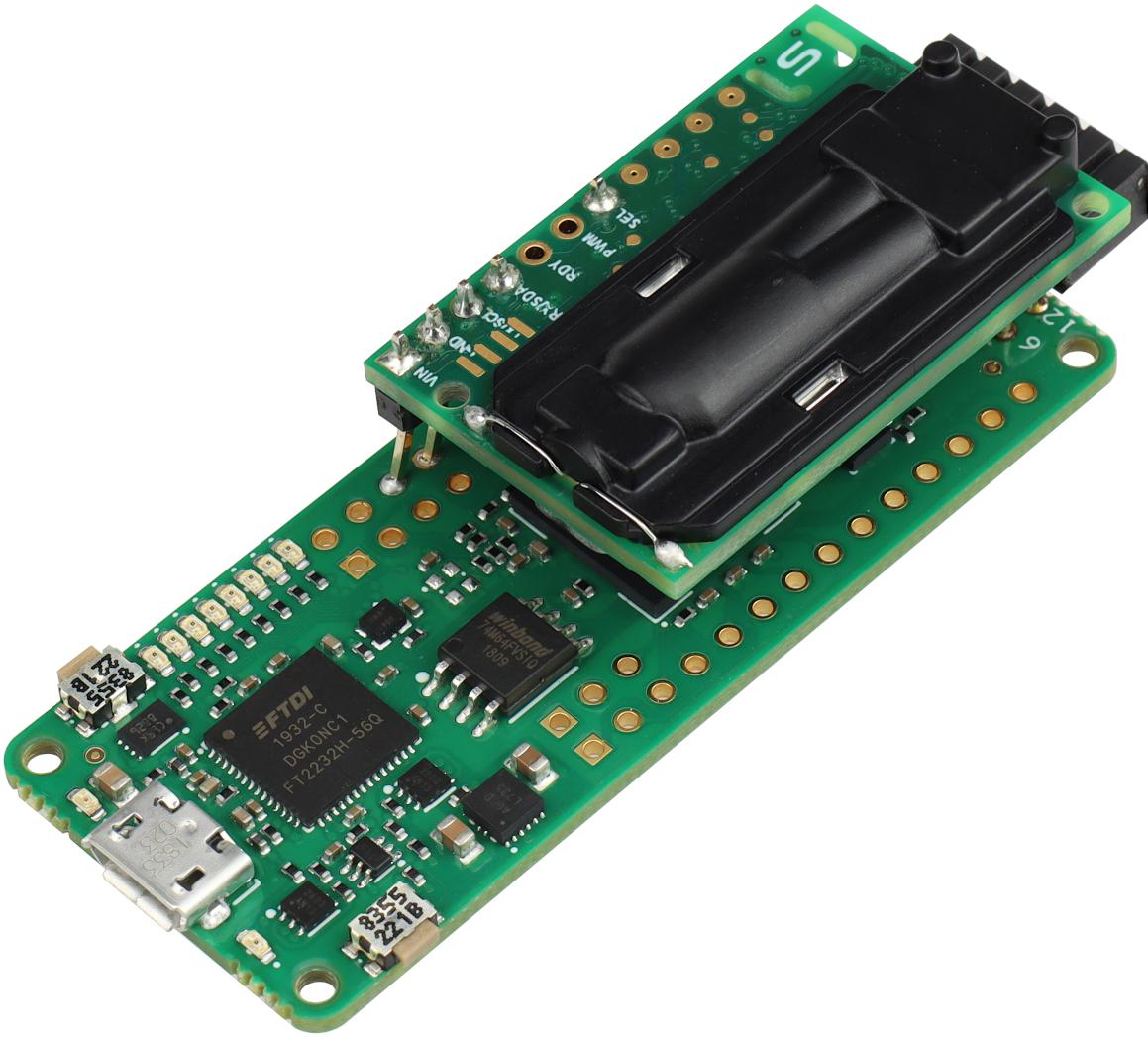

The Trenz Electronic TEI0024-01 MAXCO2 is a compact evaluation kit for precise CO2 measurement of the ambient air in rooms and displays pre-defined CO2 levels directly via 8 LEDs. MAXCO2 is a combination of the well-known MAX1000 Intel FPGA board, where many tutorials are available, and the high-precision CO2 measurement sensor SCD30 from Sensirion. The board is supplied via a standard micro-USB connector (e.g. mobile phone charger) and shows the current CO2 concentration levels via the LEDs already after a few seconds.

Further Details and ordering:
TEI0024 - MAXCO2 Evaluation kit

Key Features

MAX1000 Board

• MAX10 Intel FPGA
  • 8kLE
  • ADC 8x12Bit
  • Internal Flash
• SDRAM 8MB
• Sensor: 3-Axis Acceleration
• 2x Switch
• 8x LED (for CO2 level indication)
• Pmod connector
• Arduino MKR connector (partly used by SCD30)
• USB-Programmer2 (FPGA Programmer und Debugger)
• Small form factor: 61.5 mm x 25 mm

SCD30 – CO2 Sensor module

• NDIR CO2 sensor technology
• Integrated temperature and humidity sensor
• Best performance-to-price ratio
• Dual-channel detection for superior stability
• Accuracy CO2 sensor: ± (30 ppm + 3%)
• Measurement Range: 0 - 40'000 ppm
• Auto calibration feature enabled

Development Support

Latest documentation, design support files and reference designs with source files are available for download free of charge.

Scope of Delivery

• 1 x TEI0001 MAX1000 Trenz Electronic FPGA module with Intel MAX 10 FPGA
• 1 x Sensirion SCD30 CO2 Sensor module
• 1 x Pmod Connector

Additional Information

• Manufacturer's article number: TEI0024-01
• Trenz Electronic Wiki MAX1000
• Sensirion SCD30 Product Page
• Sensirion SCD30 Download Center
• Support Forum
