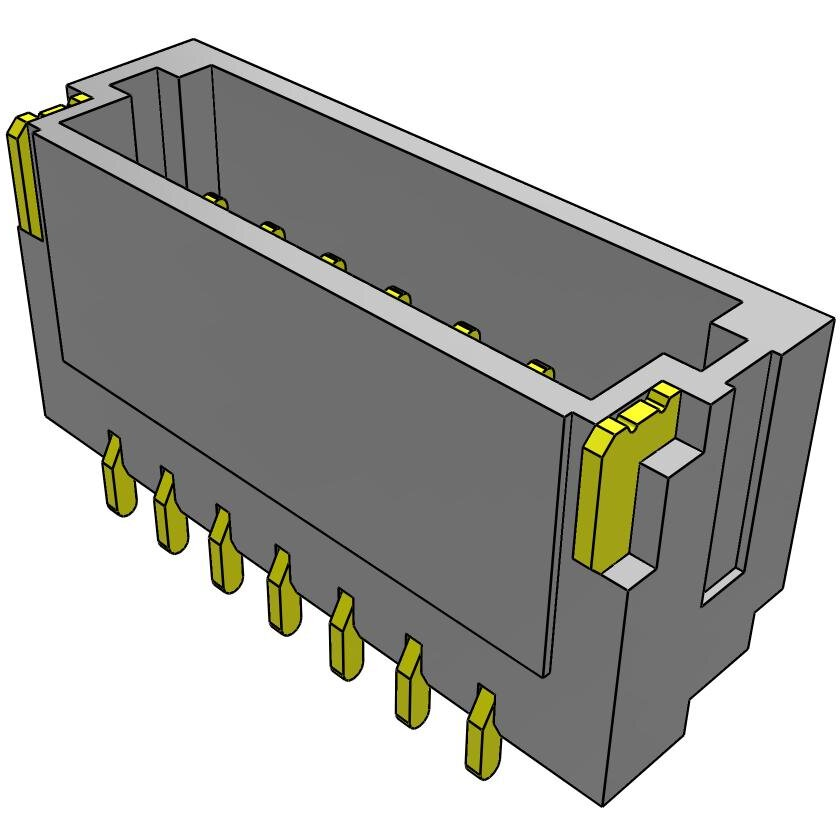

SamtecT1M-07-GF-S-RA-TRPiastre connettori e prese PCB
Conn Unshrouded Header HDR 7 POS 1mm Solder RA Side Entry SMD T/R
| Compliant | |
| EAR99 | |
| Active | |
| 8536.69.40.40 | |
| Automotive | No |
| PPAP | No |
| Unshrouded Header | |
| HDR | |
| 7 | |
| 1 | |
| Solder | |
| 1 | |
| Right Angle | |
| 3.3/Contact | |
| 353VDC|250VAC | |
| -55 | |
| 85 | |
| Tape and Reel | |
| 14 | |
| 4.95 | |
| 2.9 | |
| Surface Mount |
Make strong and binding connections on your circuit boards by adopting this unshrouded T1M-07-GF-S-RA-TR connector from Samtec. This HDR connector's 7 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a maximum voltage rating of 353VDC|250 VAC. It has a right angle body orientation. It has a header type gender. Its pitch is 1 mm. This is a 1-row connector. This device has a maximum current rating of 3.3 A/contact. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This connector has an operating temperature of -55 to 85 °C. T1M-07-GF-S-RA-TR is housed in liquid crystal polymer. This product is 14 mm long, 2.9 mm tall and 4.95 mm deep. It uses the solder termination method.
| EDA / CAD Models |
