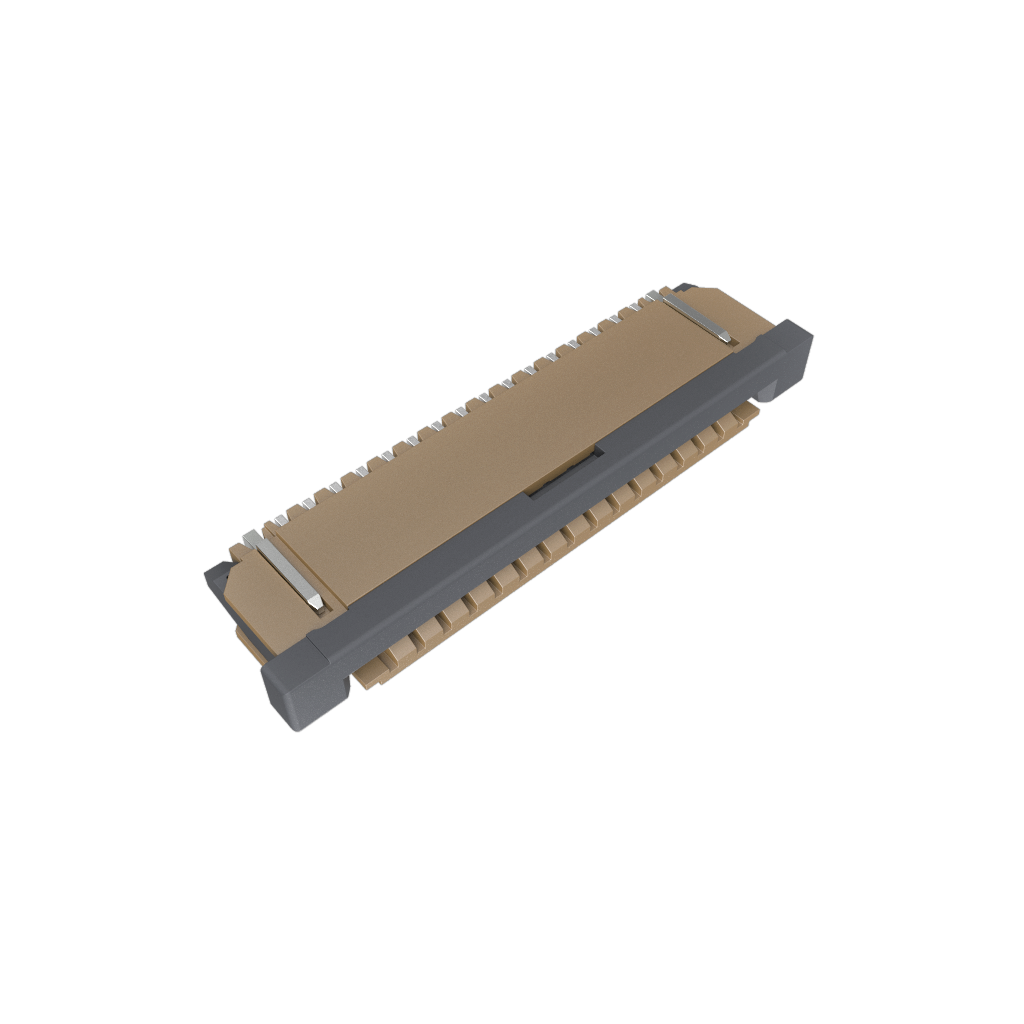

Amphenol Communications SolutionsSFW16R-1STAE1LFConnettore FFC-FPC
1.00mm Flex Connector, SFW-R series, 16 Position, Down Side Contact, Side Entry Surface Mount ZIF Connector, Lead Free, Selective Gold plated Terminals with Tin-plate Solder-tail
| Compliant | |
| EAR99 | |
| Active | |
| 8536.69.40.40 | |
| Automotive | No |
| PPAP | No |
| FPC Connector | |
| 16 | |
| 1 | |
| Solder | |
| 1 | |
| Right Angle | |
| SKT | |
| 1/Contact | |
| 100VDC|100VAC | |
| 500 | |
| 30 | |
| -55 | |
| 105 | |
| 20 | |
| Tape and Reel | |
| 21.8 | |
| 6.5 | |
| 2.7 | |
| Surface Mount |
The ffc/fpc connector SFW16R-1STAE1LF flexible flat cable from FCI can help you save valuable space by running multiple electrical channels over a flat, ribbon-like cable. This socket type connector's 16 contacts that are made out of phosphor bronze and plated with gold. This is a 1-row connector. Its pitch is 1 mm. It has a right angle body orientation. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This product is 21.8 mm long, 2.7 mm tall and 6.5 mm deep. It uses the solder termination method. SFW16R-1STAE1LF is housed in brown polyphenylene sulfide.
