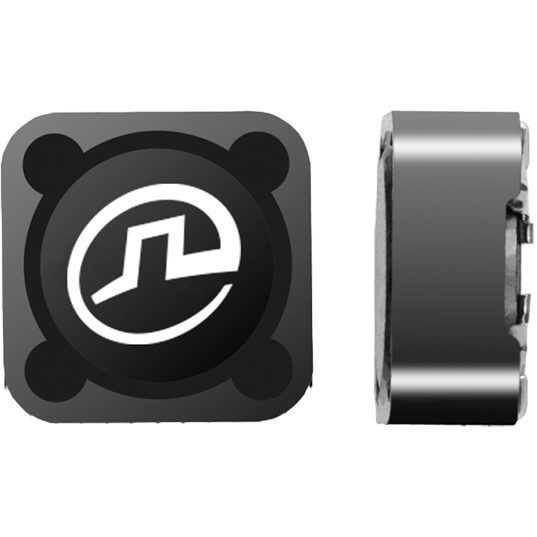

Pulse Electronics CorporationP1170.473NLTMontaggio superficie induttore
Inductor Power Shielded Wirewound 47uH/35.3uH 20% 100KHz 2.2A 0.1Ohm DCR T/R
| Compliant | |
| EAR99 | |
| Active | |
| COMPONENTS | |
| Automotive | No |
| PPAP | No |
| Power | |
| Wirewound | |
| Shielded | |
| 47u(OCL)/35.3u | |
| 20% | |
| 100K | |
| 2.2 | |
| 2.2 | |
| 0.1 | |
| 9M | |
| 2 | |
| -40 | |
| 130 | |
| Tape and Reel | |
| 12.24 | |
| Surface Mount | |
| 12.24 | |
| 6 |
This power P1170.473NLT surface mount inductor from Pulse is ideal for saving valuable space on a PCB. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 130 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It has an inductance of 35.3u/47u(Rated) H. It has a tolerance of 20%. This product is 12.24 mm long, 6 mm tall and 12.24 mm deep. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 9M Hz. This device is made with wirewound technology. This SMD inductor has a maximum DC current of 2.2 A with a maximum resistance of 100m Ohm.
