Amphenol Communications SolutionsDA15P065TXLFConnettore D-subminiatura

Amphenol’s D-Subminiature connectors are part of an industry standard for applications requiring robust and reliable connectors. These proven D-Subminiature connectors are one of the most popular Input/Output interconnects, addressing a wide variety of applications in Telecommunications, Data, Consumer Industrial, Military, Instrumentation and Medical. For many years Amphenol, has been offering a wide range of D-Subminiature connectors to meet various design requirements including those in harsh environment.

The standard density D-Subminiature series are widely used for numerous applications in many market segments. Amphenol offers Delta-D (single shell design) and Frugal-D (two shell design) under this category. Standard density D-subminiature PCB mount connectors available in straight and angled version. They come with a large number of mounting options.

Features:

• •  A Basic I/O connector comes with five shell size and housing design
• •  Has a D-shaped shell design
• •  Meets DIN 41652 and MIL-C-24308 dimensional standards
• •  Available in Straight, Angle, Wire Wrap terminations
• •  Delta-D design (1 shell + 1 housing) with stamped & formed contacts
• •  Various PCB and Panel mounting accessory options available
• •  Lead-free and RoHS compliant

Benefits:

• •  Most popular Rugged and sturdy I/O connector
• •  Supports the need for polarization
• •  Interchangable and intermateable with other makes
• •  Support different PCB mounting requirements
• •  Price competitive
• •  Wide variety of choices for secure connection
• •  Meets environmental, health and safety requirements

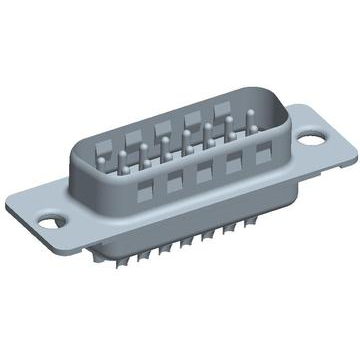

Communicate with your serial connections using the DA15P065TXLF DVI connector from FCI. Its pitch is 2.74 mm. This 2-row connector has a single port. It has a straight body orientation. It has a maximum voltage rating of 1000 VAC. This device has a maximum current rating of 5 A/contact. DA15P065TXLF is housed in thermoplastic. Its 15 terminals use the solder bucket termination method. This product is 12.17 mm tall. This DVI connector has an operating temperature of -55 to 125 °C.
