TPS60140EVM-144 is an evaluation tool for the regulated voltage triple charge pump TPS60140
Using Part
Vignette
1 / 1
Pour les produits finaux
- Boost Converter
- Cordless Phone
- Glucose Monitor
- Instrumentation and Measurement
- MP3 Player
- Personal Digital Assistant
- Portable Medical Instrumentation
- Processor Power Management
Description

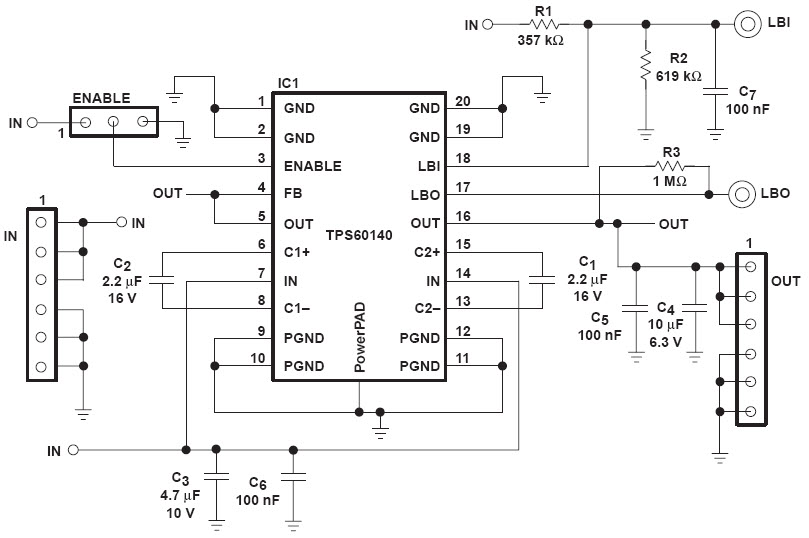

- TPS60140EVM-144 is an evaluation tool for the regulated voltage triple charge pump TPS60140. The package includes a tested evaluation module (EVM), an EVM user's guide (SLVU023) that contains the schematic, bill of material, components placement, layout and the setup of the EVM. The TPS60140/1 datasheet is also included, but please make sure that you download the latest version from the internet
Caractéristiques principales
-
Conversion TypeDC to DC
-
Input Voltage1.8 to 2|2 to 3.6 V
-
Output Voltage5 V
-
Output Current0.05|0.1 A
-
TopologyBoost
Pièces en vedette (4)
| Pièce numéro | Fabricant | Type | Description | |||
|---|---|---|---|---|---|---|
|
TPS60140PWPR | Texas Instruments | Charge Pump | Charge Pump STPUP 5V 100mA 20-Pin HTSSOP EP T/R | Ajouter au panier | |
|
|
TPS60140PWPRG4 | Texas Instruments | Charge Pump | Charge Pump STPUP 5V 100mA 20-Pin HTSSOP EP T/R | Ajouter au panier | |
|
|
TPS60140PWPG4 | Texas Instruments | Charge Pump | Charge Pump STPUP 5V 100mA 20-Pin HTSSOP EP Tube | Ajouter au panier | |
|
|
TPS60140PWP | Texas Instruments | Charge Pump | Charge Pump STPUP 5V 100mA 20-Pin HTSSOP EP Tube | Ajouter au panier | |
