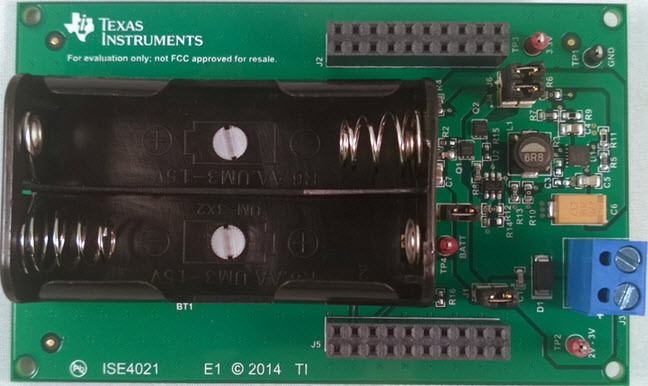

TIDA-00372, Wi-Fi System Powered by 2 AA Batteries Extends Life By Using Long Power Off Periods Reference Design
Using Part
Vignette
1 / 3
Pour les produits finaux
- Building Automation
- Home Automation
- IoT Applications
- Smart Sensor
Description

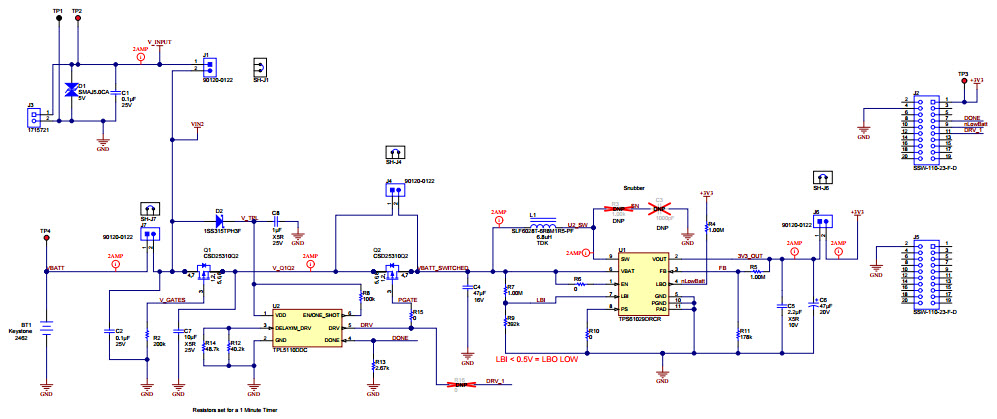

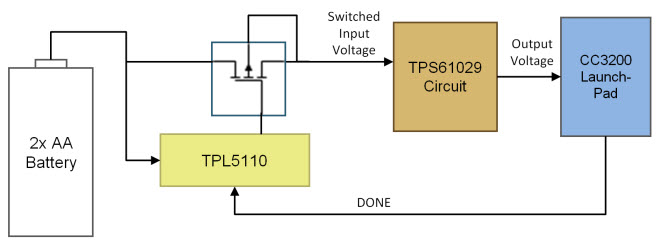

- TIDA-00372, Wi-Fi System Powered by 2 AA Batteries Extends Life By Using Long Power Off Periods Reference Design. TIDA-00372 is a power supply design for use with the CC3200 SimpleLink wireless MCU. This design includes a boost power supply that enables the use of analog circuits such as sensor products that cannot operate at voltages available from two series connected AA Batteries. A Nano-power timer enables long power-off cycles and increases battery life
Pièces en vedette (3)
| Pièce numéro | Fabricant | Type | Description | |||
|---|---|---|---|---|---|---|
|
TPS61029DRCR | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 0.9V to 6.5V Synchronous Step Up Single-Out 1.8V to 5.5V 1.5A 10-Pin VSON EP T/R | Ajouter au panier | |
|
TPL5110DDCR | Texas Instruments | Timers | Standard Timer Single -40°C 105°C 6-Pin TSOT-23 T/R | Ajouter au panier | |
|
|
TPL5110DDCT | Texas Instruments | Timers | Standard Timer Single 6-Pin TSOT-23 T/R | Ajouter au panier | |
