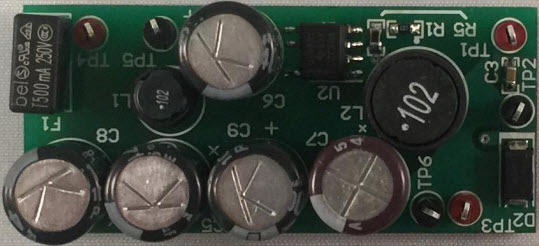

PMP11236.1, 105 to 440 VAC input, 5V/24V Dual-output Auxiliary Supply Reference Design Using UCC28881
Using Part
Vignette
1 / 4
Pour les produits finaux
- Power Supplies
Description

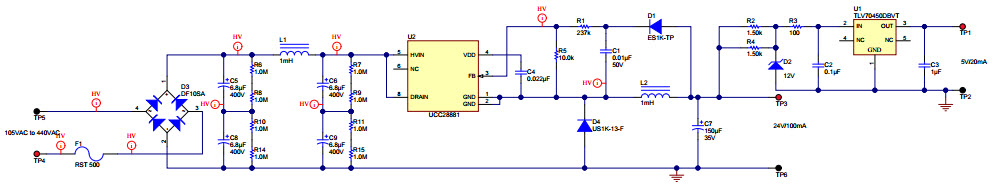

- PMP11236.1, 105 to 440 VAC input, 5V/24V Dual-output Auxiliary Supply Reference Design Using UCC28881. The PMP11236 is a high voltage (105VAC to 440VAC) Buck converter reference design using MOSFET integrated controller UCC28881. 24V/100mA is provided by the UCC28881 Buck converter and followed by a TLV70450 LDO to provide 5V/20mA output. This design is compatible with Class B conduction EMI regulation
Caractéristiques principales
-
Conversion TypeAC to DC
-
Input Voltage105 to 440 (AC) V
-
Output Voltage24 V
-
Output Current100 A
-
Output Power2400 W
-

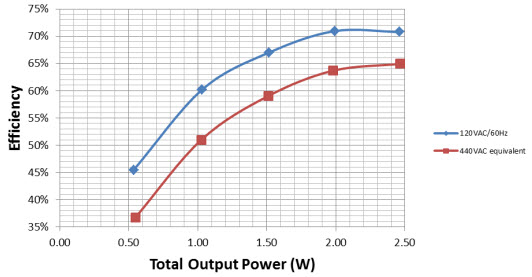

Efficiency71 %
-
TopologyBuck- Non Sync
Pièces en vedette (3)
| Pièce numéro | Fabricant | Type | Description | |||
|---|---|---|---|---|---|---|
|
TLV70450DBVT | Texas Instruments | Linear Regulators | LDO Regulator Pos 5V 0.15A 5-Pin SOT-23 T/R | Ajouter au panier | |
|
UCC28881D | Texas Instruments | AC to DC Switching Converters | AC to DC Switching Converter Flyback 75kHz Tube 7-Pin SOIC | Ajouter au panier | |
|
|
UCC28881DR | Texas Instruments | AC to DC Switching Converters | AC to DC Switching Converter Flyback 75kHz T/R 7-Pin SOIC | Ajouter au panier | |
