MAX8822EVKIT+, Evaluation Kit for MAX8822 7-LEDs White LED Driver for Cellular Phone
Using Part
Vignette
1 / 1
Pour les produits finaux
- Cellular Phone
- LCD Backlighting
- Smart Phone
Description

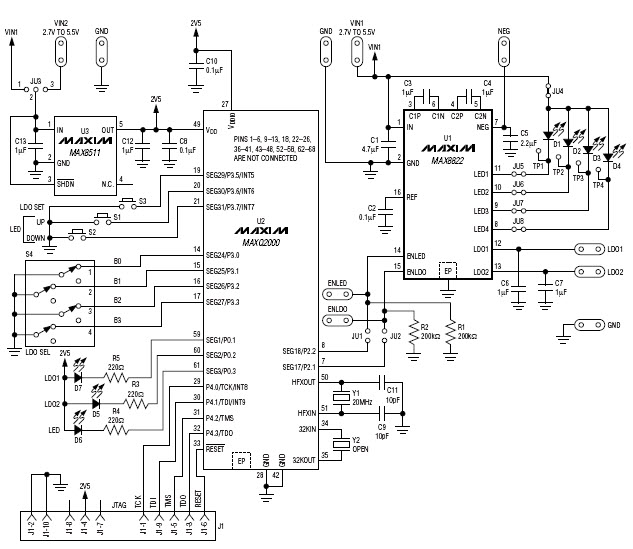

- MAX8822EVKIT+, MAX8822 Evaluation Kit is a fully assembled and tested printed-circuit board that demonstrates MAX8822 ultra-efficient negative charge-pump LED driver with dual LDOs
Caractéristiques principales
-
Input Voltage2.7 to 5.5 V
-
Output Current0.024 to 0.0001 A
-
Number of Derived Elements7
Pièces en vedette (5)
| Pièce numéro | Fabricant | Type | Description | |||
|---|---|---|---|---|---|---|
|
XT9S20ANA20M | Vishay | Crystals | Crystal 20MHz ±30ppm (Tol) ±50ppm (Stability) 20pF FUND 50Ohm 2-Pin Thru-Hole Bulk | Ajouter au panier | |
|
MAX8511EXK25+ | Analog Devices | Linear Regulators | LDO Regulator Pos 2.5V 0.12A 5-Pin SC-70 T/R | Ajouter au panier | |
|
|
MAX8511EXK25+ | Analog Devices | Linear Regulators | LDO Regulator Pos 2.5V 0.12A 5-Pin SC-70 T/R | Ajouter au panier | |
|
MAX8822ETE+ | Analog Devices | LED Drivers | LED Driver 4 Segment 1400uA Supply Current 16-Pin TQFN EP T/R | Ajouter au panier | |
|
|
MAX8822ETE+ | Analog Devices | LED Drivers | LED Driver 4 Segment 1400uA Supply Current 16-Pin TQFN EP T/R | Ajouter au panier | |
