LT1767, Dual-output SEPIC converter
Using Part
Vignette
1 / 1
Pour les produits finaux
- Battery Management
- Distributed Control System
- DSL Modem
- Portable Computers
Description

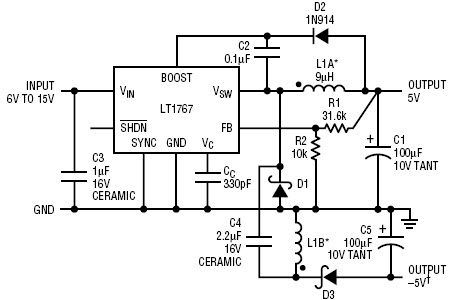

- Circuit shows a dual-output SEPIC converter, Producing both 5V and 5V using only a single magnetic component. The two inductors shown are wound on a single BH Electronics toroidal core
Caractéristiques principales
-
Conversion TypeDC to DC
-
Input Voltage6 to 15 V
-
Output Voltage-5|5 V
-
TopologySingle-Ended Primary Inductance
